Victron Inverter 48/800 VE.Direct Schuko – pure sine wave inverter for 230V mains powerThe Victron Inverter 48/800 VE.Direct Schuko is a pure sine wave inverter from Victron Energy that converts the battery's DC power into 230V AC power. It provides stable 230V power with the same quality as the electrical grid, ensuring that sensitive electronics, motors, and pumps run smoothly.Benefits
Pure sine wave: Provides the same power quality as the electrical grid, ensuring that sensitive electronics, motors, and pumps run without issues.
Low standby consumption (9 W): Can remain on without unnecessarily draining the battery.
Input voltage 36.8 - 62 V: Operates stably throughout the battery's entire voltage range.
Applications
230V power for refrigerators, coffee machines, and tools in motorhomes and vans.
Boats that need mains power without shore connection.
Emergency power in summer cottages and off-grid installations.
Specifications
Specification
Details
Part number
PINx × 1801X10
Continuous power at 25 °C
800 W
Continuous power at 40 °C
650 W
Timed power (cold start)
900 W/1h
Peak power
1200 W/15s
AC output voltage
230 V +/- 3 %
AC output frequency
50 or 60 Hz +/- 0.1 %
DC input voltage range
36.8 - 62 V
Low battery voltage shutdown
37.2 V
Dynamic low voltage shutdown (load-dependent)
Yes, see Dynamic cut off chapter.
Low battery voltage restart and alarm
43.6 V
Charged battery detection
56 V
Max. efficiency
91 %
Zero-load consumption
9 W
Power limit for ECO mode
adjustable
Protection
a – g
Operating temperature range
-40 to +65 °C (fan-assisted cooling)
Power derating
1.25 % per °C above 40 °C
Humidity (non-condensing)
max. 95 %
Material and color
steel chassis and plastic cover (blue Ral 5012)
Battery connection terminals
screw terminals
Max. battery cable cross-section
16 mm²
AC output sockets
SCHUKO model: CEE 7/4 / IEC model: IEC-320 (male plug included) / UK model: BS 1363 / AU/NZ model: AS/NZS 3112
Protection class
IP 21
Weight
5.5 kg
Dimensions (h × w × d)
105 × 216 × 310
Remote on/off
Yes
Automatic AC transfer switch
Not built-in. Add a Filax × 2 transfer switch, or use an inverter/charger instead.
Safety
EN/IEC 60335-1, EN/IEC 62109-1
EMC
EN 55014-1, EN 55014-2 / IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Automotive directive
ECE R10-4 pending
Part number
PIN481801200
Victron Inverter Remote On/Off Cable – original Victron accessoryThe Victron Inverter Remote On/Off Cable is an original accessory from Victron Energy. It integrates directly into the Victron system and is built to last in demanding marine and vehicle environments.Advantages
Original Victron accessory: Fits the Victron system directly without any modifications.
Reliable quality: Materials and craftsmanship built to last in marine and vehicle environments.
Application
Original accessory that fits the Victron system directly.
Camper van, boat, holiday home, and off-grid systems.
Safe and reliable installation.
Specifications
Specification
Details
Weight
0.014 kg
Dimensions (h × w × d)
10 × 17 × 1 mm
Item number
ASS030550120
Victron Quattro inverter/charger 48V/8000W/110A – inverter and battery charger in one unitThe Victron Quattro inverter/charger 48V/8000W/110A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the campsite fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — even for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
44 kg
Dimensions (h × w × d)
280 × 350 × 470 mm
Item number
QUA488024000
Download datasheet (PDF)
Victron Quattro inverter/charger 48V/15000W/200A – inverter and battery charger in one unitThe Victron Quattro inverter/charger 48V/15000W/200A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the grid — also for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
94.5 kg
Dimensions (h × w × d)
344 × 488 × 572 mm
Item number
QUA483150000
Download datasheet (PDF)
Victron Quattro inverter/charger 24V/5000W/120A – inverter and battery charger in one unitThe Victron Quattro inverter/charger 24V/5000W/120A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the campsite fuse from blowing.
Pure sine wave: Same power quality as the grid — even for sensitive electronics.
Application
Motorhomes and boats, where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Backup power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
33 kg
Dimensions (h × w × d)
340 × 328 × 444 mm
Item number
QUA245021010
Download datasheet (PDF)
Victron Quattro inverter/charger 12V/3000W/120A – inverter and battery charger in one unitThe Victron Quattro inverter/charger 12V/3000W/120A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the site's circuit breaker from tripping.
Pure sine wave: Same power quality as the mains — even for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation must be managed automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
22 kg
Dimensions (h × w × d)
218 × 258 × 362 mm
Item number
QUA123020010
Download datasheet (PDF )
Victron Quattro inverter/charger 48V/10000W/140A – inverter and battery charger in one unitThe Victron Quattro inverter/charger 48V/10000W/140A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the site fuse from tripping.
Pure sine wave: Same power quality as the grid — also for sensitive electronics.
Applications
Motorhome and boat, where both shore power and battery operation must be managed automatically.
Off-grid and hybrid systems with solar panels and generator.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
45 kg
Dimensions (h × w × d)
280 × 350 × 470 mm
Item number
QUA481030010
Download datasheet (PDF)
Victron Quattro inverter/charger 24V/8000W/200A – inverter and battery charger in one unitThe Victron Quattro inverter/charger 24V/8000W/200A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the campsite fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — also for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
44 kg
Dimensions (h × w × d)
280 × 350 × 470 mm
Item number
QUA248020010
Download datasheet (PDF)
Victron Quattro inverter/charger 24V/3000W/70A – inverter and battery charger in one unitThe Victron Quattro inverter/charger 24V/3000W/70A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power, preventing the site fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — also for sensitive electronics.
Application
Campervans and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
22 kg
Dimensions (h × w × d)
218 × 258 × 362 mm
Item number
QUA243020010
Download datasheet (PDF)
Victron Quattro inverter/charger 12V/5000W/220A – inverter and battery charger in one unitThe Victron Quattro inverter/charger 12V/5000W/220A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power, preventing the site fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — even for sensitive electronics.
Application
Campervans and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
31.9 kg
Dimensions (h × w × d)
280 × 350 × 470 mm
Part number
QUA125020000
Download datasheet (PDF)
Victron Quattro-II inverter/charger 24V/5000W/120A – inverter and battery charger in one unitThe Victron Quattro-II inverter/charger 24V/5000W/120A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the circuit breaker at the site from tripping.
Pure sine wave: Same power quality as the grid — even for sensitive electronics.
Application
Camper vans and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in homes and businesses.
Specifications
Specification
Details
PowerControl / PowerAssist
Yes
AC input
input voltage range: 187 - 265VAC
Max. feed-through current
50 A
Input voltage range
19 – 33 V
Output in inverter mode
output voltage: 230VAC ± 2 %
Cont. output power at 25°C / 77°F
5000 VA
Cont. output power at 40°C / 104°F
3700 W
Cont. output power at 65°C / 150°F
3000 W
Max. feed-in power
5000 VA
Peak power
9000 W
Max. efficiency
96 %
Zero-load consumption
18 W
Charge voltage absorption
28.8 V
Charge voltage float
27.6 V
Storage mode
26.4 V
Charge current house battery
120 A
Auxiliary output
Yes (32 A)
Programmable relay
Yes
Protection
a - g
VE.Bus communication port
for parallel and three-phase operation, remote monitoring and system integration
General purpose com. port
Yes, 2x
Common Characteristics
Operating temp.: -40 to +65 °C (-40 – 150°F) / (fan-assisted cooling) / Humidity (non-condensing): max. 95 % / Maximum Altitude 2000 m
Material and color
steel, blue RAL 5012 / Protection category: IP21 / Pollution degree 2, OVC3
Battery connections
M8 bolts
230 VAC connections
screw terminals 13 mm² (6 AWG)
Weight
31 kg
Dimensions (h × w × d)
607 × 329 × 149 mm
Safety
EN 60335-1, EN 60335-2-29, IEC62109-1, IEC62109-2
Emission / immunity
EN 55014-1, EN 55014-2, / EN-IEC 61000-3-2, EN-IEC 61000-3-3 / IEC 61000-6-1, EN 61000-6-2, / EN 61000-6-3
Emergency power supply (UPS)
Please consult certificates on our website.
Anti-islanding
Please consult certificates on our website.
Nominal voltage
24 V
Item number
QUA242505010
Download datasheet (PDF)
Victron MultiPlus inverter/charger 48V/5000W/70A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 48V/5000W/70A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power, preventing the site's fuse from blowing.
Pure sine wave: Power quality identical to the grid — even for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
35 kg
Dimensions (h × w × d)
240 × 328 × 444 mm
Item number
PMP485021010
Download datasheet (PDF)
Victron MultiPlus inverter/charger 48V/500W/6A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 48V/500W/6A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power, preventing the site's fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — even for sensitive electronics.
Application
Camper vans and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
4.4 kg
Dimensions (h × w × d)
100 × 181 × 311 mm
Item number
PMP481500000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 48V/800W/9A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 48V/800W/9A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — even for sensitive electronics.
Application
Motorhome and boat, where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar cells and generator.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Rated voltage
48 V
Weight
7.5 kg
Dimensions (h × w × d)
100 × 240 × 360 mm
Item number
PMP481800000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 48V/1600W/13A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 48V/1600W/13A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — even for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
11.5 kg
Dimensions (h × w × d)
120 × 270 × 465 mm
Part number
PMP482160000
Download datasheet (PDF)
Victron MultiPlus 48V/3000W/35A-50 – inverter and battery charger in one unitThe Victron MultiPlus 48V/3000W/35A-50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
20 kg
Dimensions (h × w × d)
218 × 258 × 362 mm
Item number
PMP483021010
Download datasheet (PDF)
Victron MultiPlus 48V/3000W/35A-16 – inverter and battery charger in one unitThe Victron MultiPlus 48V/3000W/35A-16 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
20 kg
Dimensions (h × w × d)
218 × 258 × 362 mm
Item number
PMP483020001
Download datasheet (PDF)
Victron MultiPlus inverter/charger 48V/1200W/13A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 48V/1200W/13A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power, preventing the site's fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — even for sensitive electronics.
Application
Motorhomes and boats, where both shore power and battery operation must be managed automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
9.9 kg
Dimensions (h × w × d)
100 × 250 × 406 mm
Item number
PMP482120000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 24V/500W – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 24V/500W is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the mains — also for sensitive electronics.
Application
Camper van and boat where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generator.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
6 kg
Dimensions (h × w × d)
100 × 182 × 311 mm
Item number
PMP241500000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 24V/800W/16A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 24V/800W/16A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from blowing.
Pure sine wave: Same power quality as the electrical grid — also for sensitive electronics.
Application
Camper vans and boats, where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar cells and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
7.5 kg
Dimensions (h × w × d)
100 × 240 × 360 mm
Item number
PMP241800000
Download datasheet (PDF)
Victron MultiPlus 24V/5000W/120A-100 – inverter and battery charger in one unitThe Victron MultiPlus 24V/5000W/120A-100 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
35 kg
Dimensions (h × w × d)
240 × 328 × 444 mm
Item number
PMP245021010
Download datasheet (PDF)
Victron MultiPlus-II 24V/5000W/120A-50 – inverter and battery charger in one unitThe Victron MultiPlus-II 24V/5000W/120A-50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
30 kg
Dimensions (h × w × d)
149 × 330 × 607 mm
Item number
PMP242505010
Download datasheet (PDF)
Victron MultiPlus-II 24V/3000W/70A-32 – inverter and battery charger in one unitThe Victron MultiPlus-II 24V/3000W/70A-32 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
21 kg
Dimensions (h × w × d)
141 × 268 × 499 mm
Item number
PMP242305010
Download datasheet (PDF)
Victron MultiPlus 24V/3000W/70A-16 – inverter and battery charger in one unitThe Victron MultiPlus 24V/3000W/70A-16 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
18 kg
Dimensions (h × w × d)
218 × 258 × 362 mm
Item number
PMP242300001
Download datasheet (PDF)
Victron MultiPlus inverter/charger 12V/800W/35A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 12V/800W/35A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from tripping.
Pure sine wave: Same power quality as the mains — even for sensitive electronics.
Application
Camper vans and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
7.5 kg
Dimensions (h × w × d)
100 × 240 × 360 mm
Item number
PMP121800000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 24V/1600W/40A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 24V/1600W/40A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the site's fuse from blowing.
Pure sine wave: Same power quality as the mains grid — also for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation need to be managed automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
11.5 kg
Dimensions (h × w × d)
110 × 214 × 375 mm
Item number
PMP242160000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 12V/1200W/50A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 12V/1200W/50A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power, preventing the site fuse from tripping.
Pure sine wave: Power quality identical to the grid — even for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be managed automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
9.8 kg
Dimensions (h × w × d)
100 × 250 × 406 mm
Item number
PMP122120000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 24V/1200W/25A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 24V/1200W/25A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V, and switches automatically between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — also for sensitive electronics.
Application
Motorhome and boat, where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generator.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
9.7 kg
Dimensions (h × w × d)
100 × 250 × 406 mm
Item number
PMP242120000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 12V/1600W/70A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 12V/1600W/70A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the mains grid — even for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Rated voltage
12 V
Weight
11.5 kg
Dimensions (h × w × d)
29 × 510 × 190 mm
Item number
PMP122160000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 12V/500/20A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 12V/500/20A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from tripping.
Pure sine wave: The same power quality as the electrical grid — also for sensitive electronics.
Application
Camper vans and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Rated voltage
12 V
Weight
6 kg
Dimensions (h × w × d)
100 × 182 × 311 mm
Item number
PMP121500000
Download datasheet (PDF)
Victron MultiPlus C inverter/charger 12V/2000W/80 – inverter and battery charger in one unitThe Victron MultiPlus C inverter/charger 12V/2000W/80 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from tripping.
Automatic transfer switch: Automatically switches between shore power and battery operation without interruption (32 A).
Pure sine wave: Same power quality as the electrical grid — even for sensitive electronics.
Applications
Camper vans and boats where both shore power and battery operation need to be managed automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
PowerControl / PowerAssist
Yes
Automatic transfer switch
32 A
Input voltage range
9.5 - 17Vdc
Output voltage
230Vac ± 2 %
Output frequency
50 Hz ± 0.1 %
Cont. output power at 25°C (77°F)
2000 VA
Cont. output power at 40°C (104°F)
1400 W
Cont. output power at 65°C (149°F)
1000 W
Peak power
3500 W
Max. efficiency
93 %
Zero-load consumption
10 W
AC input
187 - 265Vac
Charge voltage absorption
14.4 V
Charge voltage float
13.8 V
Storage mode
13.2 V
Charge current house battery
80 A
Charge current starter battery
1 A
Battery temperature sensor
Yes
Programmable relay
Yes
Protection
a – g
Operating temperature
-40 to +65 °C (-40 to +140°F), fan-cooled
Humidity
Maximum 95 %, non-condensing
Max. altitude above sea level
2000 m
Material and color
steel/ABS, blue RAL 5012
Protection class
IP 21
Battery connection
M8 bolts
230V AC connection
screw terminals 13 mm² (6 AWG)
Weight
15.5 kg (34.2lb)
Dimensions (h × w × d)
506 × 236 × 147 mm (19.92 × 9.29 × 5.79 inch)
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
Emission / immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 / IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles
ECE R10-4
Nominal voltage
12 V
Item number
CMP122200000
Download datasheet (PDF)
Victron MultiPlus C inverter/charger 12V/800W/35A – inverter and battery charger in one unitThe Victron MultiPlus C inverter/charger 12V/800W/35A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — also for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
10 kg
Dimensions (h × w × d)
110 × 214 × 345 mm
Item number
CMP121800000
Download datasheet (PDF)
Victron MultiPlus C inverter/charger 24V/2000W/50 – inverter and battery charger in one unitThe Victron MultiPlus C inverter/charger 24V/2000W/50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the shore power fuse from blowing.
Automatic transfer switch: Switches automatically between shore power and battery operation without interruption (32 A).
Pure sine wave: Same power quality as the electrical grid — also suitable for sensitive electronics.
Application
Camper vans and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
PowerControl / PowerAssist
Yes
Automatic transfer switch
32 A
Input voltage range
19 - 33Vdc
Output voltage
230Vac ± 2 %
Output frequency
50 Hz ± 0.1 %
Cont. output power at 25°C (77°F)
2000 VA
Cont. output power at 40°C (104°F)
1400 W
Cont. output power at 65°C (149°F)
1000 W
Peak power
3500 W
Max. efficiency
94 %
Zero-load consumption
11 W
AC input
187 - 265Vac
Charge voltage absorption
28.8 V
Charge voltage float
27.6 V
Storage mode
26.4 V
Charge current house battery
50 A
Charge current starter battery
1 A
Battery temperature sensor
Yes
Programmable relay
Yes
Protection
a – g
Operating temperature
-40 to +65 °C (-40 to + 140°F), fan-cooled
Humidity
Maximum 95 %, non-condensing
Max. altitude above sea level
2000 m
Material and color
steel/ABS, blue RAL 5012
Protection class
IP 21
Battery connection
M8 bolts
230V AC connection
screw terminals 13 mm² (6 AWG)
Weight
15.5 kg (34.2 lb)
Dimensions (h × w × d)
506 × 236 × 147 mm (19.92 × 9.29 × 5.79 inch)
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
Emission / immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 / IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles
ECE R10-4
Nominal voltage
24 V
Item number
CMP242200000
Download datasheet (PDF)
Victron MultiPlus C inverter/charger 12V/1600W/70 – inverter and battery charger in one unitThe Victron MultiPlus C inverter/charger 12V/1600W/70 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the grid — also for sensitive electronics.
Application
Motorhome and boat, where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generator.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
10 kg
Dimensions (h × w × d)
110 × 214 × 375 mm
Item number
CMP122160000
Download datasheet (PDF)
Victron MultiPlus C inverter/charger 12V/1200W/50 – inverter and battery charger in one unitThe Victron MultiPlus C inverter/charger 12V/1200W/50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the shore-side fuse from blowing.
Pure sine wave: The same power quality as the grid — also for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
10 kg
Dimensions (h × w × d)
110 × 214 × 375 mm
Item number
CMP122120000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 24V/2000W/50-32 – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 24V/2000W/50-32 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the circuit breaker at the site from tripping.
Automatic transfer switch: Switches automatically between shore power and battery operation without interruption (32 A).
Pure sine wave: Same power quality as the grid — even for sensitive electronics.
Application
Camper vans and boats where both shore power and battery operation must be managed automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
PowerControl / PowerAssist
Yes
Automatic transfer switch
32 A
Input voltage range
19 - 33Vdc
Output voltage
230Vac ± 2 %
Output frequency
50 Hz ± 0.1 %
Cont. output power at 25°C (77°F)
2000 VA
Cont. output power at 40°C (104°F)
1400 W
Cont. output power at 65°C (149°F)
1000 W
Peak power
3500 W
Max. efficiency
94 %
Zero-load consumption
11 W
AC input
187 - 265Vac
Charging voltage absorption
28.8 V
Charging voltage float
27.6 V
Storage mode
26.4 V
Charging current house battery
50 A
Charging current starter battery
1 A
Battery temperature sensor
Yes
Programmable relay
Yes
Protection
a – g
Operating temperature
-40 to +65 °C (-40 to +140°F), fan cooled
Humidity
Maximum 95 %, non-condensing
Max. altitude
2000 m
Material and color
steel/ABS, blue RAL 5012
Protection class
IP 21
Battery connection
M8 bolts
230V AC connection
screw terminals 13 mm² (6 AWG)
Weight
15.5 kg (34.2lb)
Dimensions (h × w × d)
506 × 236 × 147 mm (19.92 × 9.29 × 5.79 inch)
Safety
EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
Emission / immunity
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 / IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles
ECE R10-4
Nominal voltage
24 V
Item number
PMP242200000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 24V/3000W/70A GX – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 24V/3000W/70A GX is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the fuse at the site from blowing.
Pure sine wave: Same power quality as the electrical grid — even for sensitive electronics.
Built-in GX device: Full monitoring and remote control via the VRM Portal without extra hardware.
Application
Motorhome and boat, where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generator.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
19 kg
Dimensions (h × w × d)
141 × 268 × 499 mm
Item number
PMP242306000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 48V/2000/25-32A – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 48V/2000/25-32A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from tripping.
Pure sine wave: The same power quality as the grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be managed automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
15 kg
Dimensions (h × w × d)
146 × 234 × 506 mm
Part number
PMP482200000
Download datasheet (PDF)
Victron MultiPlus inverter/charger 48V 4500W/55-32 – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 48V 4500W/55-32 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — even for sensitive electronics.
Application
Camper van and boat, where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generator.
Emergency power systems and energy storage in residential and commercial settings.
Specifications
Specification
Details
Nominal voltage
48 V
Weight
21.4 kg
Dimensions (h × w × d)
149 × 275 × 590 mm
Item number
PMP482405012
Download datasheet (PDF)
Victron MultiPlus 12V/3000W/120A-16 – inverter and battery charger in one unitThe Victron MultiPlus 12V/3000W/120A-16 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
20.9 kg
Item number
PMP122300001
Download datasheet (PDF)
Victron MultiPlus 12V/2000W/80A-32 – inverter and battery charger in one unitThe Victron MultiPlus 12V/2000W/80A-32 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
16 kg
Dimensions (h × w × d)
147 × 236 × 506 mm
Item number
PMP122200000
Download datasheet (PDF)
Victron MultiPlus 12V/3000W/120A-50 – inverter and battery charger in one unitThe Victron MultiPlus 12V/3000W/120A-50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
21.7 kg
Dimensions (h × w × d)
218 × 258 × 362 mm
Item number
PMP123021010
Download datasheet (PDF)
Victron MultiPlus-II 12V/3000W/120A-32 – inverter and battery charger in one unitThe Victron MultiPlus-II 12V/3000W/120A-32 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies your installation with pure sine wave 230V and switches automatically between shore power and battery operation.Benefits
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the fuse at the campsite or marina from blowing.
Pure sine wave: The same power quality as the mains grid — also for sensitive electronics.
Applications
Motorhomes and boats where both shore power and battery operation need to be handled automatically.
Off-grid and hybrid systems with solar panels and a generator.
Backup power systems and energy storage in homes and businesses.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
21.7 kg
Dimensions (h × w × d)
147 × 275 × 546 mm
Item number
PMP122305010
Download datasheet (PDF)
Victron MultiPlus inverter/charger 24V/3000W/70-50 – inverter and battery charger in one unitThe Victron MultiPlus inverter/charger 24V/3000W/70-50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V, and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power and prevents the site fuse from blowing.
Pure sine wave: The same power quality as the electrical grid — even for sensitive electronics.
Application
Camper vans and boats, where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
24 V
Weight
18 kg
Dimensions (h × w × d)
218 × 258 × 362 mm
Part number
PMP242301011
Download datasheet (PDF)

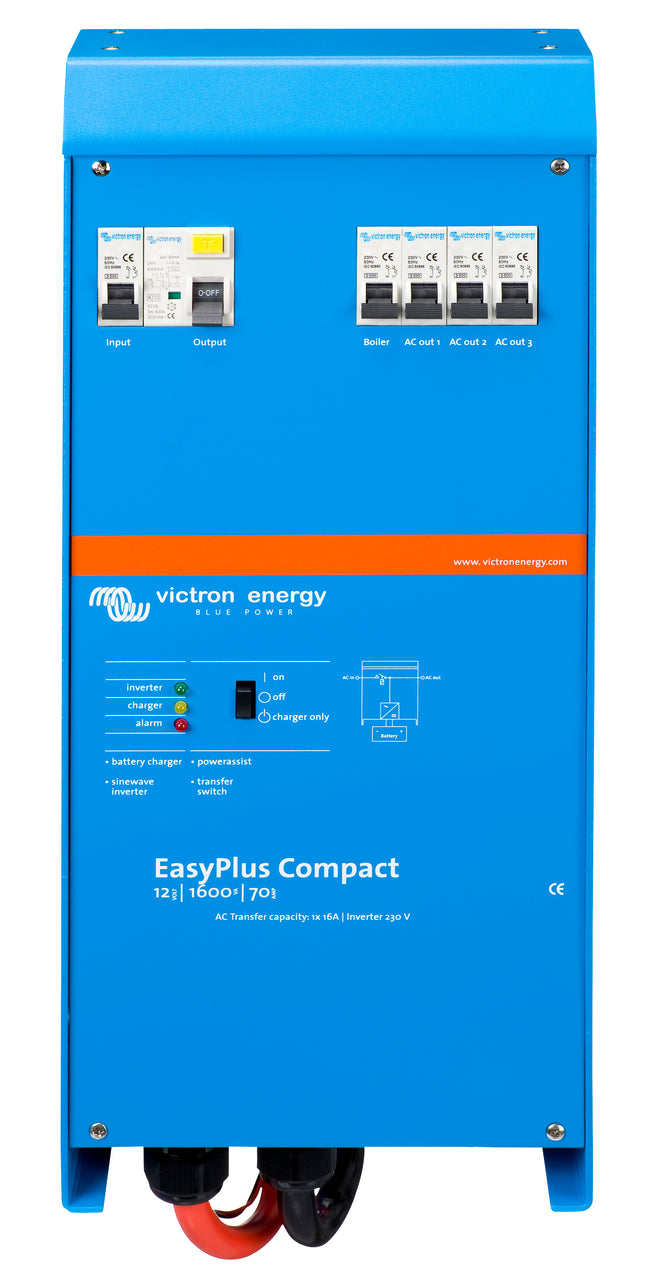

Victron EasyPlus C inverter/charger 12V/1600W/70A – inverter and battery charger in one unitThe Victron EasyPlus C inverter/charger 12V/1600W/70A is a combined inverter and battery charger from Victron Energy — two functions in one unit. It provides the installation with pure sine wave 230V and automatically switches between shore power and battery operation.Advantages
PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power to prevent the site fuse from blowing.
Pure sine wave: Same power quality as the grid — even for sensitive electronics.
Application
Motorhomes and boats where both shore power and battery operation must be handled automatically.
Off-grid and hybrid systems with solar panels and generators.
Emergency power systems and energy storage for residential and commercial use.
Specifications
Specification
Details
Nominal voltage
12 V
Weight
12 kg
Dimensions (h × w × d)
210 × 214 × 745 mm
Item number
CEP122160000
Download datasheet (PDF)
Victron Inverter RS Smart 48V/6000VA 230V – pure sine wave inverter for 48 V batteries (without solar input)This item (PIN482600000) is the Victron Inverter RS Smart 48/6000 230V – a powerful pure sine wave inverter that converts power from a 48 V battery into 230 V AC. It has no built-in solar charge controller: solar panels are connected via a separate MPPT controller on the DC side or via a solar inverter on the AC output (AC coupling). Battery and inverter data can be viewed on the built-in display and via Bluetooth in the VictronConnect app.Benefits
Powerful pure sine wave: 6000 VA, 4500 W continuous at 40 °C and 9 kW peak power for 3 seconds to start heavy loads.
Light and efficient: High-frequency design weighing 11 kg, with up to 96.5 % efficiency and a no-load consumption of 20 W.
AC coupling of solar panels: An external solar inverter on the AC output can charge the battery with up to 5000 W (max. 88 A charging current).
Bluetooth and GX connection: Monitor and configure the inverter in VictronConnect, and connect a GX device via VE.Can for remote monitoring in VRM.
Expandable: Up to 12 units can be connected in parallel, and 3-phase systems can be built with up to 4 units per phase.
Applications
Off-grid systems with a 48 V battery bank, where the solar panels charge the battery via separate MPPT controllers.
Systems where a solar inverter is AC-coupled to the inverter's output.
Summer houses, workshops and larger mobile systems that need 230 V from a 48 V battery.
Specifications
Specification
Details
Nominal battery voltage
48 V
DC input range
38–62 V
Rated power
6000 VA
Continuous power at 40 °C
4500 W
Continuous power at 65 °C
3000 W
Peak power
9 kW for 3 sec. / 7 kW for 4 min.
Output voltage
230 V AC ±2 %, 50 Hz (can be set to 60 Hz)
Max. continuous AC current
25 A
Max. efficiency
96.5 % (at 1 kW load)
No-load consumption
20 W
Solar input (MPPT)
No – solar panels are connected via a separate MPPT or AC coupling
Max. AC-coupled solar power
5000 W (external solar inverter on the AC output)
Max. charging current
88 A at 57.6 V
Charging voltage
Programmable 36–60 V (absorption 57.6 V / float 55.2 V by default)
Communication
Bluetooth, VE.Can (GX device) and VE.Direct
Inputs and outputs
Programmable relay, 2 analogue/digital inputs, remote on/off
Parallel and 3-phase operation
Up to 12 units in parallel / 4 units per phase
Enclosure rating
IP21
Operating temperature range
-40 to +65 °C (fan-cooled)
Battery connection
M8 bolts
Dimensions (h × w × d)
425 × 440 × 125 mm
Weight
11 kg
Item number
PIN482600000
Download datasheet (PDF)
Victron Inverter RS Smart Solar 48V/6000W – 48 V inverter with built-in MPPT solar chargerThe Victron Inverter RS Smart Solar 48/6000 is a 6000 VA pure sine wave inverter and an MPPT solar charge controller combined in one enclosure. It converts power from a 48 V battery into 230 V AC and at the same time charges the battery directly from solar panels at up to 450 V. Setup and monitoring are done via Bluetooth in the VictronConnect app or on the built-in display.Benefits
Inverter and solar charger in one: You save a separate MPPT controller, and the installation becomes simpler and more compact.
High PV voltage: The solar input handles up to 450 V DC, so the panels can be connected in series in long strings.
Powerful pure sine wave: 4500 W continuous at 40 °C and 9 kW peak power for 3 seconds to start heavy loads.
Bluetooth and GX connection: Monitor and configure the system in VictronConnect, and connect a GX device via VE.Can for remote monitoring in VRM.
Expandable: Up to 12 units can be connected in parallel, and 3-phase systems can be built with up to 4 units per phase.
Applications
Off-grid systems in summer houses, allotment gardens or workshops with a 48 V battery bank and solar panels.
Larger mobile systems and boats with a 48 V battery system.
Remote installations without a grid connection, where solar panels charge the battery and the inverter supplies 230 V.
Specifications
Specification
Details
Nominal battery voltage
48 V
DC input range
38–62 V
Rated power
6000 VA
Continuous power at 40 °C
4500 W
Continuous power at 65 °C
3000 W
Peak power
9 kW for 3 sec. / 7 kW for 4 min.
Output voltage
230 V AC ±2 %, 50 Hz (can be set to 60 Hz)
Max. continuous AC current
25 A
Max. efficiency
96.5 % (at 1 kW load)
No-load consumption
20 W
Max. PV voltage
450 V DC
PV start-up voltage
120 V DC
Max. total charging current
100 A
Charging voltage
Programmable 36–60 V (absorption 57.6 V / float 55.2 V by default)
Communication
Bluetooth, VE.Can (GX device) and VE.Direct
Inputs and outputs
Programmable relay, 2 analogue/digital inputs, remote on/off
Parallel and 3-phase operation
Up to 12 units in parallel / 4 units per phase
Enclosure rating
IP21
Operating temperature range
-40 to +65 °C (fan-cooled)
Battery connection
M8 bolts
Dimensions (h × w × d)
425 × 440 × 125 mm
Weight
11 kg
Item number
PIN482601000
Download datasheet (PDF)
Victron Phoenix Inverter Control – remote control panel for Phoenix invertersVictron Phoenix Inverter Control is a remote control panel for Victron Phoenix inverters that have a UTP socket for remote monitoring and control. With the panel, you can operate the inverter and follow its status via LEDs from a location other than where the inverter is mounted.Benefits
Remote operation: Control the inverter from a visible and convenient location, even if the inverter itself sits in a cabinet, engine room or plant room.
Status via LEDs: The LEDs show the inverter's status, and their brightness is dimmed automatically at night.
Can also be used with MultiPlus: The panel can be used on a MultiPlus if you only want the inverter and automatic transfer switch – without the charger function.
Applications
Boats, motorhomes and buses where the Phoenix inverter is mounted out of reach.
Fixed installations where the inverter needs to be operated from a central control panel.
Specifications
Specification
Details
Type
Remote control panel
Connection
UTP socket for remote control on the inverter
Compatible inverters
Phoenix 12/1200, 12/1600, 12/2000, 12/3000, 12/5000, 24/1200, 24/1600, 24/2000, 24/3000, 24/5000, 48/3000 and 48/5000
Not for
Phoenix inverters with VE.Direct – for these, use the Phoenix Inverter Control VE.Direct
Item number
REC030001210
See the product page at Victron Energy
JK Smart Inverter BMS 8-16S 200A – with CAN, RS485, heating control and BluetoothA 16S JK Smart BMS system tailored for professional LiFePO4 battery packs, especially in the 48V class. With a full communication package and 200A continuous load, this BMS is suitable for both stationary and mobile solutions – including solar systems, off-grid installations, backup, and inverter integration.The built-in 2A active balancing extends battery life and keeps the cells uniform. The system can be controlled and monitored via a Bluetooth app or integrated via CAN, RS485, or RS232 with inverters such as Victron, Growatt, and Deye. Supplied complete with power board and balance wires.Advantages
200A continuous operation without fans: Suitable for powerful 48V battery packs with up to 15+ kWh capacity
Bluetooth and app control: View SOC, cell balance, current, temperature, and status directly from your mobile
2A active balancing: Keeps cells uniform without heat generation
Full communication: CAN, RS485, and RS232 – compatible with most inverters
Expansion options: Supports external LCD display, temperature sensor, heating module, and relay control
Flexible voltage: Works with 24V, 36V, and 48V battery packs (8–16S)
Specifications
Specification
Details
Model
Inverter BMS 200A
Battery types
Li-ion, LiFePO4, LTO
Number of cells
8–16S
System voltage
24–48V DC
Balancing current
2A (active balancing)
Continuous current
200A
Peak current
350A
Communication
Bluetooth, CAN, RS485, RS232
Display
Supported (external display purchased separately)
Operating temperature
-20°C to +60°C
Dimensions (L×W×H)
320 × 120 × 13 mm
Weight
Approx. 950 g
JK Smart Inverter BMS 8-16S 150A – with CAN, RS485, and BluetoothA 16S JK Smart BMS system tailored for professional LiFePO4 battery packs, specifically in the 48V class. With a full communication package and 150A continuous load, this BMS is suitable for both stationary and mobile solutions – including solar systems, off-grid installations, backup, and inverter integration.The built-in 2A active balancing extends battery life and keeps cells uniform. The system can be managed and monitored via a Bluetooth app or integrated via CAN, RS485, or RS232 for inverters such as Victron, Growatt, and Deye. Supplied complete with power board and balance board.Benefits
150A continuous operation without fans: Suitable for powerful 48V battery packs with up to 15+ kWh capacity
Bluetooth and app control: View SOC, cell balance, current, temperature, and status directly from your mobile
2A active balancing: Keeps cells uniform without heat generation
Full communication: CAN, RS485, and RS232 – compatible with most inverters
Expansion options: Supports external LCD display, temperature sensor, heating module, and relay control
Flexible voltage: Works with 24V, 36V, and 48V battery packs (8–16S)
Specifications
Specification
Details
Model
Inverter BMS 150A
Battery types
Li-ion, LiFePO4, LTO
Number of cells
8–16S
System voltage
24–48V DC
Balancing current
2A (active balancing)
Continuous current
150A
Peak current
350A
Communication
Bluetooth, CAN, RS485, RS232
Display
Supported (external display sold separately)
Operating temperature
-20°C to +60°C
Dimensions (L×W×H)
320 × 120 × 13 mm
Weight
Approx. 950 g

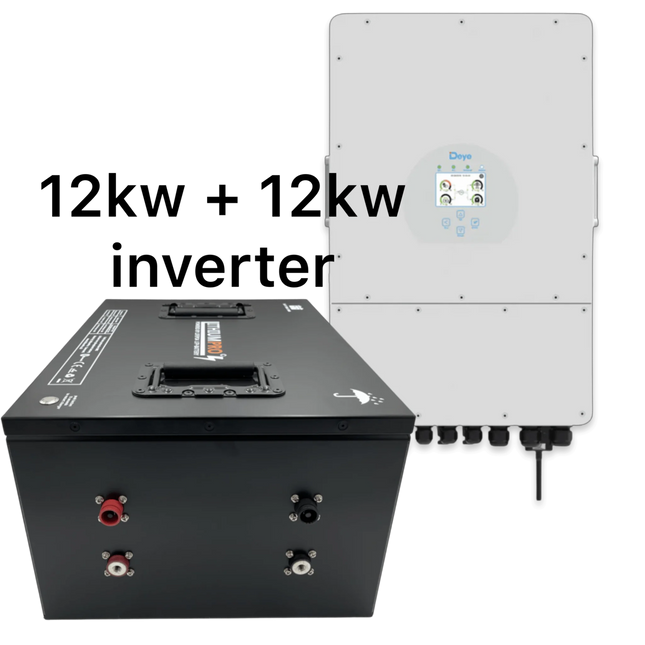

LithiumPro 12kWh LiFePO4 + Deye 12kW Inverter – Complete Energy Storage SystemThis compact, powerful system combines a 12kW Deye hybrid inverter with a high-performance LithiumPro 48V 240Ah LiFePO4 battery (approx. 12.1 kWh). Ideal for solar power systems, off-grid installations, and backup solutions where high power, safety, and long battery life are essential. With over 9,000 cycles on the battery and advanced inverter technology, you get a future-proof and reliable energy solution.Advantages
12kW Deye hybrid inverter: Stable three-phase power supply with solar integration, battery charging, and grid connection
51.2V 240Ah LithiumPro LiFePO4 battery: Long service life (9,000+ cycles), high safety, active cell balancing
Smart energy management: Flexible prioritization between solar, battery, and grid – controlled via WiFi and app
High usable capacity: Minimal energy loss thanks to 48V LiFePO4 technology
Robust construction: Inverter with IP65 protection and impact-resistant battery enclosure
Application
Solar power systems for homes and small businesses
Off-grid energy systems
Backup power for critical installations
Energy storage for agriculture, workshops, and EV charging
Marine applications (larger boats and yachts)
Specifications
Specification
Details
Inverter model
Deye SUN-12K-SG05LP3-EU
Inverter capacity
12kW
Output voltage
400V AC (3-phase)
Battery model
LithiumPro 48V 240Ah LiFePO4
Battery capacity
240Ah (approx. 12.1 kWh)
Battery voltage
48V nominal / 51.2V / 58.4V
Cells
EVE 230–240Ah LiFePO4
Cycle life
>9,000 cycles at 80% DOD
Protection
Integrated BMS (over/under voltage, over-temperature, short circuit) and fuses
BMS
JK
Operating temperature (battery)
-20°C to +60°C
Operating temperature (inverter)
-25°C to +60°C
Battery dimensions (L×W×H)
Approx. 490 × 371 × 258 mm
Battery weight
Approx. 70 kg
Inverter dimensions (L×W×H)
420 × 700 × 280 mm
Inverter weight
Approx. 36 kg
IP rating (inverter)
IP65
Delivery
Not included
Warranty
3–10 years, depending on component
Deye SUN-12K-SG05LP3-EU-SM2 hybrid inverter 12 kW 3-phase – solar inverter, battery charger and emergency power in one unit.The Deye SUN-12K-SG05LP3-EU-SM2 is a 12 kW 3-phase hybrid inverter that combines a solar inverter, battery charger, and emergency power supply into one unit. With 2 MPPT trackers and up to 24,000 W of connected solar power, it can both work in tandem with the grid and supply power to the house if the mains power fails. This means you store your own solar energy in the battery and use it when you actually need it – instead of selling it cheaply back to the grid.Benefits
Rated power 12,000 W
2 independent MPPT trackers for flexible string configuration
Up to 24,000 W of solar power can be connected
Max. charge/discharge current 240 A for the battery
Peak power in off-grid mode: 2 × rated power for 10 s
Efficiency up to 97.6 %
Protection class IP65 – suitable for outdoor mounting
Built-in LCD display for local operation and monitoring
Communication via WiFi, RS485, CAN
Ready for remote monitoring via Deye Cloud / SOLARMAN (requires data logger)
Application
Solar power systems with battery storage in private homes and small businesses
Upgrading existing solar installations with a battery (AC or DC coupled)
Emergency power and backup during power outages
Load shifting – charge the battery when power is cheap and use it during peak price hours
Three-phase installations, including those with unbalanced phase loads
Specifications
Battery type
Lead-acid or Lithium-ion
Battery voltage range
40-60 V
Max. charge/discharge current
240 A
Lithium battery charging strategy
Automatic adaptation to BMS
Number of battery inputs
1
Max. connected PV power
24,000 W
Max. PV input power
19,200 W
Max. PV input voltage
800 V
Start-up voltage
160 V
MPPT voltage range
200-650 V
Rated PV input voltage
550 V
Max. PV operating current
26+26 A
Max. short-circuit current, input
39+39 A
Number of MPPT / strings per MPPT
2/2+2
Rated AC input/output power
12,000 W
Max. AC input/output power (VA)
13,200 VA
Rated AC input/output current
18.2/17.4 A
Max. AC input/output current
20/19.2 A
Max. continuous AC pass-through (grid to load)
45 A
Peak power (off-grid)
2 × rated power for 10 s
Power factor, adjustment range
0.8 leading to 0.8 lagging
Rated input/output voltage
220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE
Rated grid frequency / range
50/45-55, 60/55-65 Hz
Harmonic current distortion (THDi)
<3 % (of rated power)
DC injection current
<0.5 % In
Max. efficiency
97.6 %
Euro-efficiency
97.0 %
MPPT efficiency
>99 %
Built-in protection
DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, arc fault detection (AFCI) (optional), anti-islanding protection, DC switch, insulation monitoring, residual current monitoring
Surge protection
Type II(DC), Type II(AC)
Display
LCD display
Communication interface
WiFi, RS485, CAN
Operating temperature
-40 to +60°C, >45°C power derating
Permissible humidity
0-100 %
Max. installation altitude
3,000m
Noise level
≤55 dB
Protection class (IP)
IP65
Inverter topology
Non-isolated (solar), isolated (battery)
Overvoltage category
OVC II(DC), OVC III(AC)
Dimensions (W×H×D)
386×660×250 (excl. connectors and brackets)
Weight
35.2 kg
Cooling
Intelligent air cooling
Warranty
5 years / 10 years (the warranty period depends on the inverter's installation location – see Deye's warranty policy)
Grid standards
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC standards
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Item number: SUN-12K-SG05LP3-EU-SM2Download datasheet (PDF)Official product page at Deye
Victron Phoenix Inverter 48V/1200W/230V – pure sine wave inverter for 230V mains powerThe Victron Phoenix Inverter 48V/1200W/230V is a pure sine wave inverter from Victron Energy that converts the battery's DC power into 230V AC power. It provides stable 230V power with the same quality as the mains, ensuring that sensitive electronics, motors, and pumps run smoothly.Advantages
Pure sine wave: Provides the same power quality as the mains, ensuring that sensitive electronics, motors, and pumps run without problems.
Low standby consumption (12 W): Can be left on without unnecessary battery drain.
Input voltage 36.8 - 62 V: Operates stably across the entire battery voltage range.
Application
230V power for refrigerators, coffee makers, and power tools in campers and vans.
Boats, where mains power is needed without shore connection.
Emergency power in summer houses and off-grid installations.
Specifications
Specification
Details
Item number
PINx × 2121X10
Continuous power at 25 °C
1150 W
Continuous power at 40 °C
1000 W
Time-limited power (cold start)
1200 W/1h
Peak power
1600 W/15s
AC output voltage
230 V +/- 3 %
AC output frequency
50 or 60 Hz +/- 0.1 %
DC input voltage range
36.8 - 62 V
Low battery voltage disconnection
37.2 V
Dynamic low voltage disconnection (load-dependent)
Yes, see Dynamic cut off chapter.
Low battery voltage restart and alarm
43.6 V
Charged battery detection
56 V
Max. efficiency
92 %
Zero-load consumption
12 W
ECO mode power limit
adjustable
Protection
a – g
Operating temperature range
-40 to +65 °C (fan-assisted cooling)
Power derating
1.25 % per °C above 40 °C
Humidity (non-condensing)
max. 95 %
Material and color
steel chassis and plastic cover (blue RAL 5012)
Battery connection terminals
screw terminals
Max. battery cable cross-section
25 mm²
AC outlets
SCHUKO model: CEE 7/4 / IEC model: IEC-320 (male plug included) / UK model: BS 1363 / AU/NZ model: AS/NZS 3112
Protection class
IP 21
Weight
7.2 kg
Dimensions (h × w × d)
117 × 231 × 333
Remote on/off
Yes
Automatic AC transfer switch
Not built-in. Add a Filax 2 transfer switch, or use an inverter/charger instead.
Safety
EN/IEC 60335-1, EN/IEC 62109-1
EMC
EN 55014-1, EN 55014-2 / IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Automotive directive
ECE R10-4 pending
Item number
victron-phoenix-inverter-48v-1200w-c91523
Victron Phoenix Inverter 24V/1200W/230V – pure sine wave inverter for 230V mains powerThe Victron Phoenix Inverter 24V/1200W/230V is a pure sine wave inverter from Victron Energy that converts the battery's DC power into 230V AC power. It provides stable 230V power with the same power quality as the mains, ensuring that sensitive electronics, motors, and pumps run smoothly.Advantages
Pure sine wave: Provides the same power quality as the mains, so sensitive electronics, motors, and pumps run without issues.
Low no-load consumption (11 W): Can be left on without unnecessarily draining the battery.
Input voltage 18.4 - 34 V: Operates stably across the entire battery voltage range.
Application
230V power for refrigerators, coffee machines, and power tools in motorhomes and vans.
Boats where mains power is needed without shore connection.
Emergency power in holiday homes and off-grid installations.
Specifications
Specification
Details
Part number
PINx × 2121X10
Continuous power at 25 °C
1150 W
Continuous power at 40 °C
1000 W
Time-limited power (cold start)
1200 W/1h
Peak power
1600 W/15s
AC output voltage
230 V +/- 3 %
AC output frequency
50 or 60 Hz +/- 0.1 %
DC input voltage range
18.4 - 34 V
Low battery voltage disconnect
18.6 V
Dynamic low voltage disconnect (load-dependent)
Yes, see Dynamic cut off chapter.
Low battery voltage restart and alarm
21.8 V
Charged battery detection
28 V
Max. efficiency
91 %
Zero-load consumption
11 W
Power threshold for ECO mode
adjustable
Protection
a – g
Operating temperature range
-40 to +65 °C (fan-assisted cooling)
Power derating
1.25 % per °C above 40 °C
Humidity (non-condensing)
max. 95 %
Material and color
steel chassis and plastic cover (blue RAL 5012)
Battery connection terminals
screw terminals
Max. battery cable cross-section
25 mm²
AC output sockets
SCHUKO model: CEE 7/4 / IEC model: IEC-320 (male plug included) / UK model: BS 1363 / AU/NZ model: AS/NZS 3112
Protection class
IP 21
Weight
7.2 kg
Dimensions (h × w × d)
117 × 231 × 333
Remote on/off
Yes
Automatic AC transfer switch
Not built-in. Add a Filax 2 transfer switch, or use an inverter/charger instead.
Safety
EN/IEC 60335-1, EN/IEC 62109-1
EMC
EN 55014-1, EN 55014-2 / IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Automotive directive
ECE R10-4 pending
Part number
victron-phoenix-inverter-24v-1200w-604bd7
Victron Phoenix Inverter 12V/1200W/230V – pure sine wave inverter for 230V mains powerThe Victron Phoenix Inverter 12V/1200W/230V is a pure sine wave inverter from Victron Energy that converts the battery's DC power into 230V AC power. It provides stable 230V power with the same quality as the utility grid, ensuring that sensitive electronics, motors, and pumps run smoothly.Advantages
Pure sine wave: Provides the same power quality as the utility grid, so sensitive electronics, motors, and pumps run without issues.
Low idle consumption (11 W): Can remain switched on without draining the battery unnecessarily.
Input voltage 9.2 - 17 V: Works stably throughout the battery's entire voltage range.
Applications
230V power for refrigerators, coffee machines, and power tools in camper vans and delivery vans.
Boats, where mains power is needed without shore power connection.
Emergency power in summer houses and off-grid installations.
Specifications
Specification
Details
Item number
PINx × 2121X10
Continuous power at 25 °C
1150 W
Continuous power at 40 °C
1000 W
Peak power (cold start)
1200 W/1h
Surge power
1600 W/15s
AC output voltage
230 V +/- 3 %
AC output frequency
50 or 60 Hz +/- 0.1 %
DC input voltage range
9.2 - 17 V
Low battery voltage disconnect
9.3 V
Dynamic low voltage disconnect (load-dependent)
Yes, see Dynamic cut off chapter.
Low battery voltage restart and alarm
10.9 V
Charged battery detection
14.0 V
Max. efficiency
91 %
Zero-load consumption
11 W
ECO mode power limit
adjustable
Protection
a – g
Operating temperature range
-40 to +65 °C (fan-assisted cooling)
Derating
1.25 % per °C above 40 °C
Humidity (non-condensing)
max. 95 %
Material and color
steel chassis and plastic cover (blue RAL 5012)
Battery connection terminals
screw terminals
Max. battery cable cross-section
35 mm²
AC sockets
SCHUKO model: CEE 7/4 / IEC model: IEC-320 (male plug included) / UK model: BS 1363 / AU/NZ model: AS/NZS 3112
Protection class
IP 21
Weight
7.2 kg
Dimensions (h × w × d)
117 × 231 × 374
Remote on/off
Yes
Automatic AC transfer switch
Not built-in. Add a Filax 2 transfer switch, or use an inverter/charger instead.
Safety
EN/IEC 60335-1, EN/IEC 62109-1
EMC
EN 55014-1, EN 55014-2 / IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Automotive directive
ECE R10-4 pending
Item number
victron-phoenix-inverter-12v-1200w-220v-febc9f
SINE Inverter 12V 1500W/3000WDelivers genuine 230V pure sine wave power directly from your 12V battery – suitable for sensitive equipment and heavy-duty tools, both at home and off-grid. With high efficiency, low heat generation, and robust protection, it is built for stable and safe operation, whether you are on the road, in a boat, in the workshop, or in a cabin without a power grid.The pure sine wave ensures that everything from laptops to coffee machines and power tools functions without noise, errors, or risk. With 1500W continuous output and 3000W peak, you can connect even demanding devices.Advantages
Pure sine wave (230V grid quality): Stable and safe operation of sensitive equipment such as computers, chargers, and medical devices
1500W continuous / 3000W peak: Handles heavy loads and manages high startup currents
Automatic safety protection: Built-in protection against overheating, short circuits, low voltage, and reverse polarity
High efficiency and low noise: Up to 92% efficiency and temperature-controlled fan for quiet operation
Compact and robust design: Solid aluminum housing, resistant to shocks, vibrations, and heat
Easy installation: Plug & play mounting with included cables and terminals
Application
Camper vans and delivery vehicles
Boats and marine installations
Off-grid cabins and solar power systems
Tools, compressors, and electrical appliances
Backup power for power outages
Specifications
Specification
Details
Model
SINE Inverter 12V 1500W/3000W
Input voltage
12V DC
Output voltage
230V AC, pure sine wave
Max power
1,500W continuous, 3,000W peak
Efficiency
Up to 92%
Galvanic isolation
Yes
Protection
Short circuit, overtemperature, reverse polarity
IP class
IP22
Operating temperature
-20°C to +50°C
Dimensions (L×W×H)
32 × 20 × 10 cm
Weight
3.5 kg
Warranty
2 years
SINE Inverter 12V 2500W/5000WDelivers true 230V pure sine wave power directly from your 12V battery – suitable for sensitive electronic equipment and heavy-duty tools, both at home and off-grid. With high efficiency, low heat generation, and solid protection, it is built for stable and safe operation, whether you are on the road, in a boat, in the workshop, or in a cabin without a power grid.The pure sine wave ensures that everything from laptops to coffee machines and power tools functions without noise, errors, or risk. With 2500W continuous power and 5000W peak, you can connect even demanding devices.Advantages
Pure sine wave (230V grid quality): Stable and safe operation of sensitive equipment such as computers, chargers, and medical devices
2500W continuous / 5000W peak: Handles heavy loads and manages high startup currents
Automatic safety protection: Built-in protection against overheating, short circuits, low voltage, and reverse polarity
High efficiency and low noise: Up to 92% efficiency and temperature-controlled fan for quiet operation
Compact and robust design: Solid aluminum housing, resistant to shocks, vibrations, and heat
Easy installation: Plug & play mounting with included cables and clamps
User-friendly monitoring: LCD display shows operating status and warnings
Remote control: Included for easy operation and flexibility
Applications
Motorhomes and vans
Boats and marine installations
Off-grid cabins and solar power systems
Tools, compressors, and electrical appliances
Backup power during power outages
Specifications
Specification
Details
Model
SINE Inverter 12V 2500W/5000W
Input voltage
12V DC
Output voltage
230V AC, pure sine wave
Max. power
2,500W continuous, 5,000W peak
Efficiency
Up to 92%
Galvanic isolation
Yes
Protection
Short circuit, overtemperature, reverse polarity
IP rating
IP22 (indoor use)
Operating temperature
-20°C to +50°C
Dimensions (L×W×H)
37.5 × 26.5 × 10.3 cm
Weight
6.8 kg
Warranty
2 years
SINE Inverter 24V 3000W/6000WDelivers true 230V pure sine wave power directly from your 24V battery – suitable for both sensitive equipment and high-power consumers. Whether you are off-grid in a cabin, on the go in a motorhome, or need backup power at home, you get stable, quiet, and reliable operation.With a full 3000W of continuous power and 6000W peak, it can handle demanding loads like power tools, household appliances, and industrial equipment.Advantages
Pure sine wave (230V grid quality): Stable and safe operation of sensitive equipment like computers, chargers, and medical devices
3000W continuous / 6000W peak: Runs heavy loads and handles high start-up currents
Automatic safety protection: Built-in protection against overheating, short circuits, low voltage, and reverse polarity
High efficiency and low noise: Up to 95% efficiency and temperature-controlled fan for quiet operation
Compact and robust design: Solid aluminum housing, resistant to shocks, vibrations, and heat
Easy installation: Plug & play mounting with included cables and terminals
Applications
Motorhomes and vans
Boats and marine installations
Off-grid cabins and solar power systems
Tools, compressors, and electrical appliances
Backup power during power outages
Specifications
Specification
Details
Model
SINE Inverter 24V 3000W/6000W
Input voltage
24V DC
Output voltage
230V AC, pure sine
Max. power
3,000W continuous, 6,000W peak
Efficiency
Up to 95%
Galvanic isolation
Yes
Protection
Short circuit, over-temperature, reverse polarity
IP class
IP22 (indoor use)
Operating temperature
-20°C to +50°C
Dimensions (L×W×H)
42 × 23 × 15 cm
Weight
6.5 kg
Warranty
2 years
SINE Inverter 24V 1200W/2400WDelivers true 230V pure sine wave power directly from your 24V battery – ideal for both sensitive equipment and standard household appliances. Whether you are off-grid in a cabin, in a motorhome, on a boat, or need backup power, you get stable, silent, and safe operation.With 1200W continuous power and 2400W peak, the inverter handles smaller tools, chargers, refrigerators, and other everyday equipment.Advantages
Pure sine wave (230V grid quality): Stable and safe operation of sensitive equipment such as computers, chargers, and medical devices
1200W continuous / 2400W peak: Runs heavy loads and handles high start-up currents
Automatic safety protection: Built-in protection against overheating, short circuits, low voltage, and reverse polarity
High efficiency and low noise: Up to 95% efficiency and temperature-controlled fan for quiet operation
Compact and robust design: Solid aluminum housing, resistant to shocks, vibrations, and heat
Easy installation: Plug & play mounting with included cables and terminals
Applications
Motorhomes and vans
Boats and marine installations
Off-grid cabins and solar power systems
Tools, compressors, and electrical appliances
Backup power during power outages
Specifications
Specification
Details
Model
SINE Inverter 24V 1200W/2400W
Input voltage
24V DC
Output voltage
230V AC, pure sine
Max. power
1,200W continuous, 2,400W peak
Efficiency
Up to 95%
Galvanic isolation
Yes
Protection
Short circuit, overtemperature, reverse polarity
IP rating
IP22 (indoor use)
Operating temperature
-20°C to +50°C
Dimensions (L×W×H)
32 × 20 × 10 cm
Weight
3.5 kg
Warranty
2 years
SINE Inverter 24V 2500W/5000WDelivers true 230V pure sine wave power directly from your 24V battery – suitable for both sensitive electronic equipment and demanding consumers. Whether you are in an off-grid cabin, on the move in a campervan, or need stable backup power at home, the inverter ensures quiet and reliable power supply.With 2500W continuous power and a full 5000W peak, it can handle everything from power tools and household appliances to computers and sensitive electronics.Advantages
Pure sine wave (230V grid quality): Stable and safe operation of sensitive equipment such as computers, chargers, and medical devices
2500W continuous / 5000W peak: Handles heavy loads and manages high startup surges
Automatic safety protection: Built-in protection against overheating, short-circuit, low voltage, and reverse polarity
High efficiency and low noise: Up to 95% efficiency and temperature-controlled fan for quiet operation
Compact and robust design: Solid aluminum housing, resistant to shock, vibrations, and heat
Easy installation: Plug & play assembly with included cables and terminals
Application
Campervans and vans
Boats and marine installations
Off-grid cabins and solar power systems
Tools, compressors, and electrical appliances
Backup power during power outages
Specifications
Specification
Details
Model
SINE Inverter 24V 2500W/5000W
Input voltage
24V DC
Output voltage
230V AC, pure sine
Max. power
2,500W continuous, 5,000W peak
Efficiency
Up to 95%
Galvanic isolation
Yes
Protection
Short-circuit, overtemperature, reverse polarity
IP rating
IP22 (indoor use)
Operating temperature
-20°C to +50°C
Dimensions (L×W×H)
40 × 22 × 14 cm
Weight
6 kg
Warranty
2 years
Inverters that convert your battery power to 230V. Choose based on battery voltage and the power in watts required by your appliances – remember starting current for motors and pumps. If the inverter also needs to charge the battery, see combined inverter/chargers.
