Description

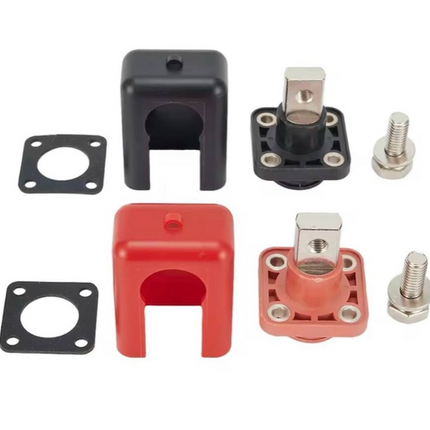

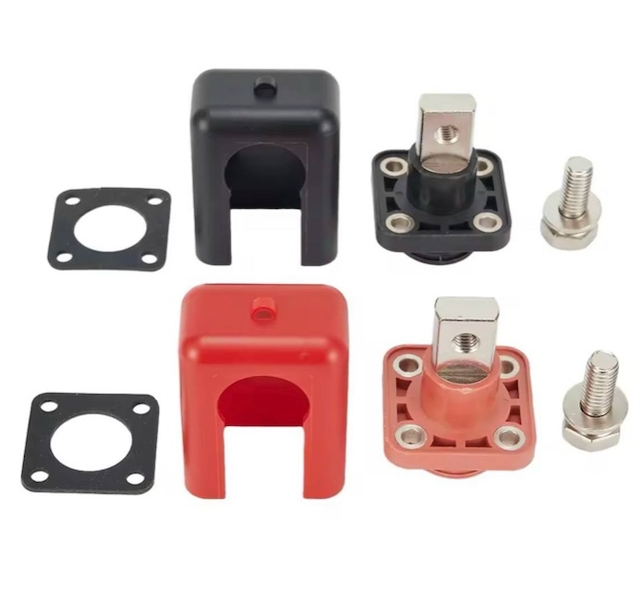

Feed-through Terminal Set – Red and Black 1000A (M10) with Protective Caps

Professional feed-through terminal set for battery boxes and power enclosures, designed for high-current applications up to 1000A. The set consists of one red and one black terminal, which are mounted through an enclosure or wall, allowing for secure and sealed cable connection from the outside.

Each terminal is made of tin-plated copper with low contact resistance and high conductivity. Rubber sealing gaskets ensure IP-rated mounting through the wall, and the protective caps safeguard against accidental contact and short circuits. Suitable for all types of DC systems from 12V up to 72V.

Specifications

Specification	Details
Set	2 pcs. – 1 x red + 1 x black terminal
Load	Up to 1000A with correct installation
Thread	M10
Material	Tin-plated copper and insulated plastic
Connection type	Flat terminal (8 mm hole) with bolt fastening
Included	2 x protective caps (red/black), 2 x sealing gaskets, bolts, nuts

Benefits

Up to 1000A load: Handles even large currents – suitable for powerful lithium batteries and inverter installations
Tight and secure mounting: Gaskets and bolt feed-through ensure high mechanical strength and IP sealing
Insulated protective caps included: Protects against short circuits and provides clear polarity marking
Universal compatibility: Fits all LithiumPro DIY enclosures and batteries, as well as custom solutions
Complete set: Everything included – terminals, nuts, gaskets, and protective caps

Note: The set is intended for professional battery assembly and should be installed with correct voltage and insulation.
