Victron VE Transfer switch 5kVA/230V

Description

Victron VE Transfer switch 5KVA/230V – automatic transfer switch between two AC sources

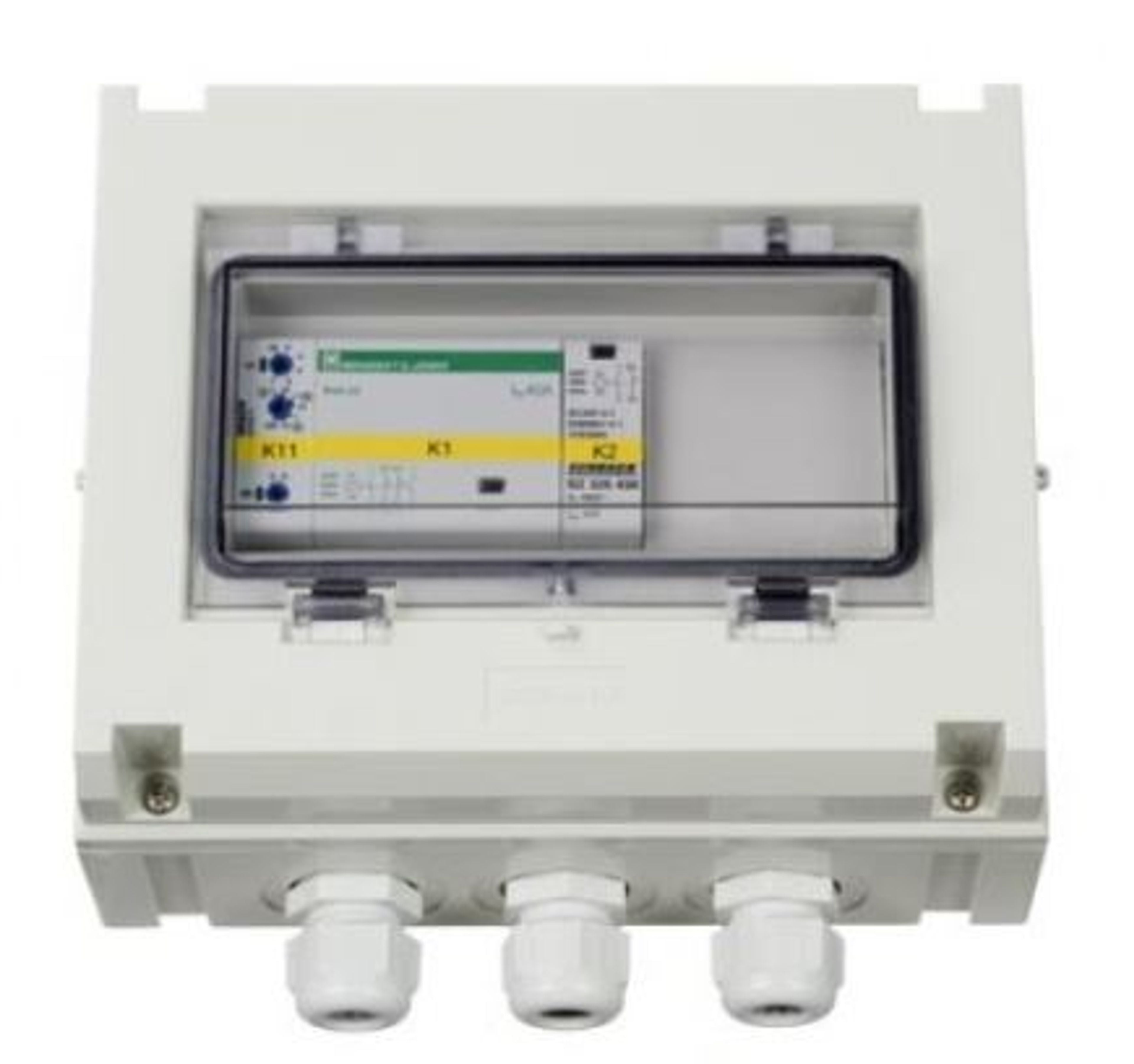

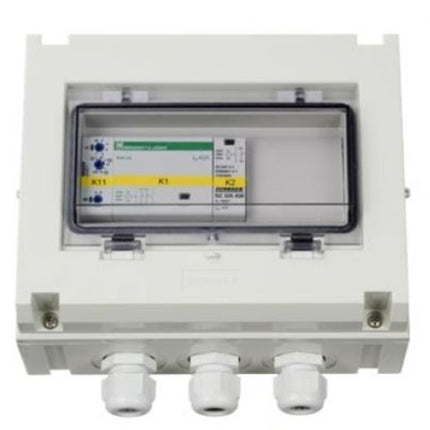

The Victron VE Transfer Switch 5 kVA is an automatic transfer switch with two AC inputs and one output. The loads are supplied from input 1 (e.g. shore power or a generator), and if this supply fails or goes outside the voltage or frequency limits, the switch automatically changes over to input 2 – typically an inverter. During the switchover itself, the power is briefly interrupted, so sensitive electronics such as computers may lose data.

Benefits

  • Automatic switching: Switches between the two sources without manual operation.
  • Delayed switch-back: Once input 1 has been stable for approx. 10 seconds (adjustable), it switches back – this protects your equipment during short voltage dips.
  • 20 A per input: Rated current of 20 A on both inputs and the output, and motor loads (e.g. air conditioning) of up to 1.3 kW.
  • Auxiliary contact: Together with a MultiPlus and a Digital Multi Control, it can automatically switch the current limit to a preset generator value.

Applications

  • Switching between generator and shore power in boats or motorhomes.
  • Switching between inverter and generator or shore power.
  • Giving a MultiPlus access to two AC sources instead of one.

Specifications

Specification Details
Nominal voltage 200–250 V AC, single-phase
Nominal frequency 50–60 Hz
Rated current, input 1 and 2 20 A
Rated output current 20 A
Max. motor load (e.g. air conditioning) 1.3 kW
Self-consumption, input 1 6 VA
Switching time, closing contacts 10–20 ms
Switching time, opening contacts 5–20 ms
Delay, input 1 Approx. 10 s (adjustable)
Auxiliary contact 200–240 V AC, 20 A, cos φ = 1
Operating temperature range -5 to +60 °C
Humidity Max. 95% (non-condensing)
Circuit breaker (MCB) and residual current device (RCD) Not included – depends on the installation
Enclosure rating IP54
Colour RAL 7035
Dimensions 175 × 215 × 120 mm
Weight 1.85 kg
Item number COS230502100

Download manual (PDF)

Victron VE Transfer switch 5kVA/230V

Product form

2.399,00 kr Incl. VAT

Typical price at other retailers: 3.100,00 kr

You save 701,00 kr -22 %

Køb nu – betal senere. Vælg Klarna ved kassen.

Free pickup in our shop(s)

2-4 day delivery

    Hurtig levering2-4 hverdage på lagervarer
    14 dages returretGælder privatkunder
    Op til 5 års garantiProducentgaranti fra Victron + 24 mdr. reklamationsret
    Dansk teknisk support+45 60 46 84 10

    Sikker betaling med

    • MobilePay
    • Visa
    • Mastercard
    • Maestro
    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • PayPal
    • Shop Pay

    Victron VE Transfer switch 5KVA/230V – automatic transfer switch between two AC sourcesThe Victron VE Transfer Switch 5 kVA is... Read more

    Warranty and lifespan

    Victron-produkter har op til 5 års producentgaranti fra Victron Energy – ud over din 2 års reklamationsret. Garantien følger Victrons garantivilkår. Har du spørgsmål til garantien, så ring til os på +45 60 46 84 10.

    Delivery and returns

    Delivery in 2-4 business days throughout Denmark. Special batteries and items not in stock may have a delivery time of up to 1 week. 14-day right of return. Read more in our delivery terms and return policy.

    Pay however you like

    Pay with MobilePay, card, Apple Pay, Google Pay or PayPal – or choose Klarna and pay later. All payments are encrypted and handled securely. Read about delivery

    Description

    Victron VE Transfer switch 5KVA/230V – automatic transfer switch between two AC sources

    The Victron VE Transfer Switch 5 kVA is an automatic transfer switch with two AC inputs and one output. The loads are supplied from input 1 (e.g. shore power or a generator), and if this supply fails or goes outside the voltage or frequency limits, the switch automatically changes over to input 2 – typically an inverter. During the switchover itself, the power is briefly interrupted, so sensitive electronics such as computers may lose data.

    Benefits

    • Automatic switching: Switches between the two sources without manual operation.
    • Delayed switch-back: Once input 1 has been stable for approx. 10 seconds (adjustable), it switches back – this protects your equipment during short voltage dips.
    • 20 A per input: Rated current of 20 A on both inputs and the output, and motor loads (e.g. air conditioning) of up to 1.3 kW.
    • Auxiliary contact: Together with a MultiPlus and a Digital Multi Control, it can automatically switch the current limit to a preset generator value.

    Applications

    • Switching between generator and shore power in boats or motorhomes.
    • Switching between inverter and generator or shore power.
    • Giving a MultiPlus access to two AC sources instead of one.

    Specifications

    Specification Details
    Nominal voltage 200–250 V AC, single-phase
    Nominal frequency 50–60 Hz
    Rated current, input 1 and 2 20 A
    Rated output current 20 A
    Max. motor load (e.g. air conditioning) 1.3 kW
    Self-consumption, input 1 6 VA
    Switching time, closing contacts 10–20 ms
    Switching time, opening contacts 5–20 ms
    Delay, input 1 Approx. 10 s (adjustable)
    Auxiliary contact 200–240 V AC, 20 A, cos φ = 1
    Operating temperature range -5 to +60 °C
    Humidity Max. 95% (non-condensing)
    Circuit breaker (MCB) and residual current device (RCD) Not included – depends on the installation
    Enclosure rating IP54
    Colour RAL 7035
    Dimensions 175 × 215 × 120 mm
    Weight 1.85 kg
    Item number COS230502100

    Download manual (PDF)
