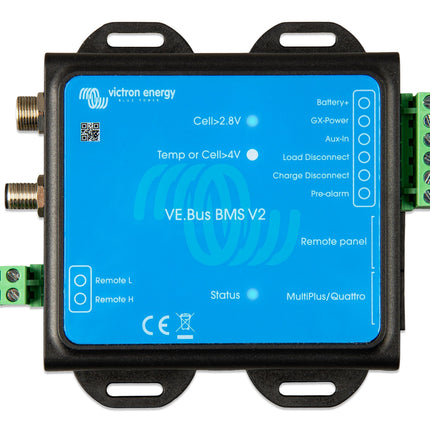

Victron VE.Bus BMS V2

Description

Victron VE.Bus BMS V2 – battery management system for lithium batteries

The Victron VE.Bus BMS V2 is a battery management system (BMS) from Victron Energy for LiFePO4 batteries. It monitors the cells and intervenes with the charger, inverter, and MPPT before the battery can be damaged.

Advantages

  • Protects the cells: Disconnects charging and loads in case of excessively high or low cell voltage.
  • Controls the entire system: Sends a signal to the inverter, charger, and MPPT so they react before the battery is damaged.
  • For Victron LiFePO4: Designed for Victron Smart Lithium batteries and their cell balancing.

Application

  • Protection of Victron LiFePO4 batteries against over- and undervoltage.
  • Lithium systems with inverter, charger, and MPPT from Victron.
  • Safe operation of lithium banks in boats and campers.

Specifications

Specification Details
Current draw - regular operation 10 mA (excluding load disconnect current)
Current draw - low cell voltage 2 mA
Current draw - switched off via remote on/off terminal 1.50 mA
GX-power output 1 A
Aux-in input 1 A
Pre-alarm output current rating 1 A, not short-circuit protected
Load disconnect output Normally high (output voltage ≈ supply voltage – 1 V) / Floating when load needs to be disconnected / Source current limit: 1 A / Sink current: 0 A
Charge disconnect output Normally high, (output voltage ≈ supply voltage – 1 V) / Floating when charger should be disconnected / Source current limit: 10 mA / Sink current: 0 A
Remote on/off Usage modes to turn system on or off: / ON when L and H terminals are interconnected (switch or relay contact) / ON when L terminal is pulled to battery minus (V<3.5 V) / ON when H terminal is high (2.9 V < VH < Vbat) / OFF in all other conditions
VE.Bus communications ports 2 x RJ45 sockets to connect to all VE.Bus products
Input voltage range 9 – 70Vdc
Material ABS
Color Matte black with a blue sticker
Weight 120g
Dimensions (h × w × d) 23.8 mm × 94.5 mm × 105.5 mm
Technology LITHIUM
Item number BMS300200200

Download datasheet (PDF)
