Victron Smart IP43 Charger 12V 30A 120-240V (3 outputs)

Description

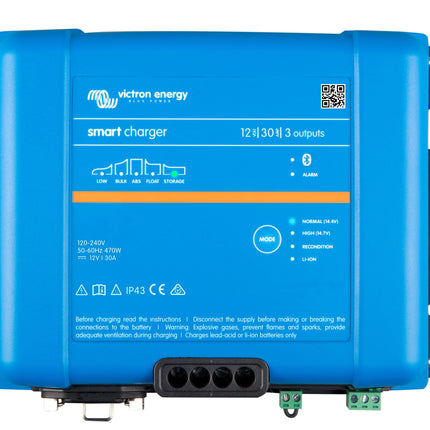

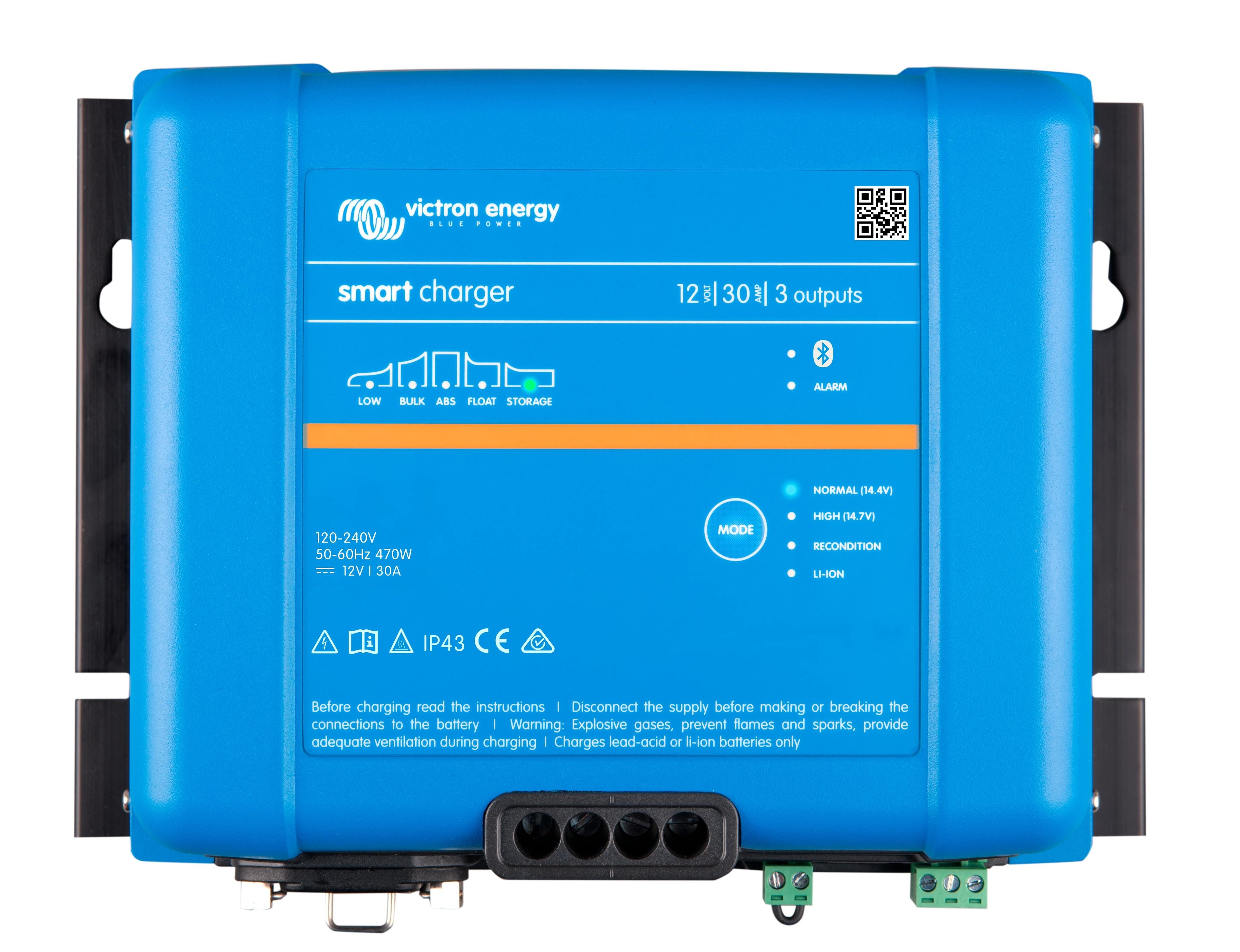

Victron Smart IP43 Charger 12V 30A 120-240V (3 outputs) – intelligent battery charger

The Victron Smart IP43 Charger 12V 30A 120-240V (3 outputs) is an intelligent battery charger from Victron Energy with adaptive multi-stage charging. It adjusts the charging voltage to the battery type so that the battery charges quickly and lasts longer, and built-in Bluetooth makes it possible to monitor operation and change settings directly from the VictronConnect app.

Advantages

  • Adaptive multi-stage charging: Adjusts the charging voltage to the battery type to extend service life.
  • Can remain connected: Automatically enters maintenance mode and can remain connected all winter.
  • Bluetooth built-in: Monitor charging and change battery profiles in the VictronConnect app.
  • Enclosure protection: electronics IP43 | connection area IP22: Withstands demanding environments in engine rooms and technical cabinets.

Applications

  • Winter charging and maintenance of batteries in boats and motorhomes.
  • Workshops and garages where batteries need to be charged quickly and gently.
  • Permanent installations where the battery bank is charged from shore power.

Specifications

Specification Details
Nominal input voltage - AC supply 120 – 240VAC
Input voltage range 85 – 250VAC (full power from 100VAC, startup from 90VAC)
Input frequency - AC supply 45 - 65 Hz
Input voltage 90 - 375 VDC
Power factor >0.99
Max. efficiency 95 / 93 %
Charge voltages - Normal mode Absorption
Float 13.8 V
Storage 13.2 V
Charge voltages - High mode Absorption
Charge voltages - Lithium mode Absorption
Temperature compensation -16 mV/°C
Charge algorithm 6-stage adaptive (3 stage for Li-ion)
Max. output current - Normal mode 30 A
Max. output current - Low current mode 15 A
Max. output current - Starter battery 4 A (1+1 output models only)
Back drain current <1 mA
Max. battery capacity 300 Ah
Min. battery capacity - Normal mode Lead: 120 Ah
Min. battery capacity - Low current mode Lead: 60 Ah
Data communication VE.Direct and Bluetooth (via VictronConnect app)
Bluetooth power and frequency -4dBm | 2402 - 2480MHz
Remote on/off Yes (2-pole terminals)
Programmable relay Yes (SPDT - 5 A up to 250VAC / 5 A up to 28VDC)
Operating temperature -20 to +60 °C (0 - 140°F) full performance up to 40 °C
Max. humidity 95 %
Material and color aluminum | blue RAL 5012
AC connection IEC 320 C14 inlet with retainer clip (AC cord ordered separately)
Battery connection screw terminals 16 mm² (AWG6)
Number of battery connections (1+1) models: 2 (2nd output via 2-pole terminals) | (3) models: 3
Protection class electronics: IP43 | connection area: IP22
Weight 2.7 kg (6.0 lbs)
Dimensions (h × w × d) 180 × 249 × 116 mm (7.1 × 9.8 × 4.6 inch)
Safety EN 60335-1, EN 60335-2-29
Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Nominal voltage 12 V
Item number PSC123053095

Download datasheet (PDF)

Victron Smart IP43 Charger 12V 30A 120-240V (3 outputs)

Product form

2.989,00 kr Incl. VAT

Typical price at other retailers: 3.195,00 kr

You save 206,00 kr -6 %

Køb nu – betal senere. Vælg Klarna ved kassen.

  • Spænding12V
Free pickup in our shop(s)

2-4 day delivery

    Hurtig levering2-4 hverdage på lagervarer
    14 dages returretGælder privatkunder
    Op til 5 års garantiProducentgaranti fra Victron + 24 mdr. reklamationsret
    Dansk teknisk support+45 60 46 84 10

    Sikker betaling med

    • MobilePay
    • Visa
    • Mastercard
    • Maestro
    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • PayPal
    • Shop Pay

    Victron Smart IP43 Charger 12V 30A 120-240V (3 outputs) – intelligent battery chargerThe Victron Smart IP43 Charger 12V 30A 120-240V... Read more

    Warranty and lifespan

    Victron-produkter har op til 5 års producentgaranti fra Victron Energy – ud over din 2 års reklamationsret. Garantien følger Victrons garantivilkår. Har du spørgsmål til garantien, så ring til os på +45 60 46 84 10.

    Delivery and returns

    Delivery in 2-4 business days throughout Denmark. Special batteries and items not in stock may have a delivery time of up to 1 week. 14-day right of return. Read more in our delivery terms and return policy.

    Pay however you like

    Pay with MobilePay, card, Apple Pay, Google Pay or PayPal – or choose Klarna and pay later. All payments are encrypted and handled securely. Read about delivery

    Description

    Victron Smart IP43 Charger 12V 30A 120-240V (3 outputs) – intelligent battery charger

    The Victron Smart IP43 Charger 12V 30A 120-240V (3 outputs) is an intelligent battery charger from Victron Energy with adaptive multi-stage charging. It adjusts the charging voltage to the battery type so that the battery charges quickly and lasts longer, and built-in Bluetooth makes it possible to monitor operation and change settings directly from the VictronConnect app.

    Advantages

    • Adaptive multi-stage charging: Adjusts the charging voltage to the battery type to extend service life.
    • Can remain connected: Automatically enters maintenance mode and can remain connected all winter.
    • Bluetooth built-in: Monitor charging and change battery profiles in the VictronConnect app.
    • Enclosure protection: electronics IP43 | connection area IP22: Withstands demanding environments in engine rooms and technical cabinets.

    Applications

    • Winter charging and maintenance of batteries in boats and motorhomes.
    • Workshops and garages where batteries need to be charged quickly and gently.
    • Permanent installations where the battery bank is charged from shore power.

    Specifications

    Specification Details
    Nominal input voltage - AC supply 120 – 240VAC
    Input voltage range 85 – 250VAC (full power from 100VAC, startup from 90VAC)
    Input frequency - AC supply 45 - 65 Hz
    Input voltage 90 - 375 VDC
    Power factor >0.99
    Max. efficiency 95 / 93 %
    Charge voltages - Normal mode Absorption
    Float 13.8 V
    Storage 13.2 V
    Charge voltages - High mode Absorption
    Charge voltages - Lithium mode Absorption
    Temperature compensation -16 mV/°C
    Charge algorithm 6-stage adaptive (3 stage for Li-ion)
    Max. output current - Normal mode 30 A
    Max. output current - Low current mode 15 A
    Max. output current - Starter battery 4 A (1+1 output models only)
    Back drain current <1 mA
    Max. battery capacity 300 Ah
    Min. battery capacity - Normal mode Lead: 120 Ah
    Min. battery capacity - Low current mode Lead: 60 Ah
    Data communication VE.Direct and Bluetooth (via VictronConnect app)
    Bluetooth power and frequency -4dBm | 2402 - 2480MHz
    Remote on/off Yes (2-pole terminals)
    Programmable relay Yes (SPDT - 5 A up to 250VAC / 5 A up to 28VDC)
    Operating temperature -20 to +60 °C (0 - 140°F) full performance up to 40 °C
    Max. humidity 95 %
    Material and color aluminum | blue RAL 5012
    AC connection IEC 320 C14 inlet with retainer clip (AC cord ordered separately)
    Battery connection screw terminals 16 mm² (AWG6)
    Number of battery connections (1+1) models: 2 (2nd output via 2-pole terminals) | (3) models: 3
    Protection class electronics: IP43 | connection area: IP22
    Weight 2.7 kg (6.0 lbs)
    Dimensions (h × w × d) 180 × 249 × 116 mm (7.1 × 9.8 × 4.6 inch)
    Safety EN 60335-1, EN 60335-2-29
    Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
    Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
    Nominal voltage 12 V
    Item number PSC123053095

    Download datasheet (PDF)
