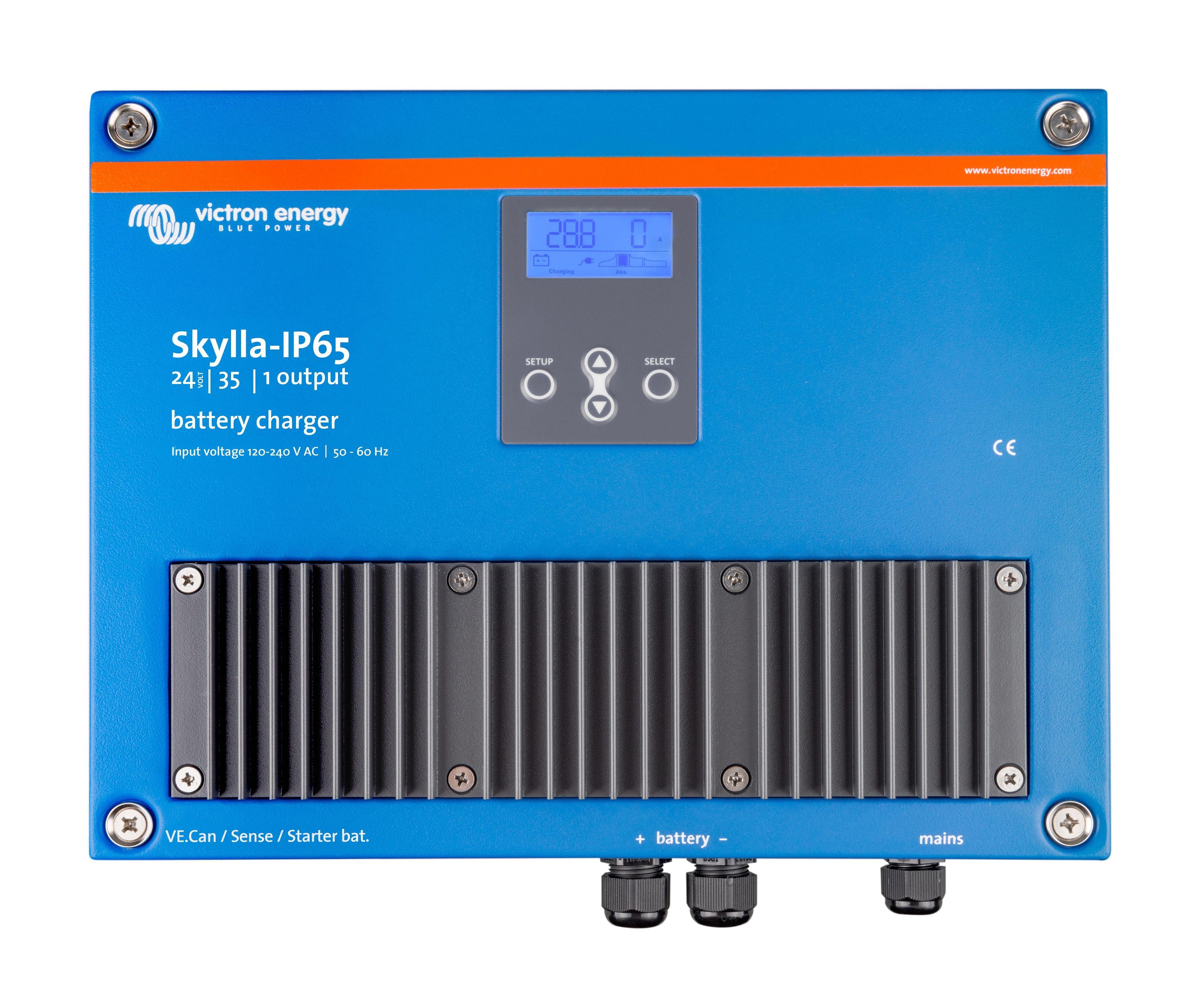

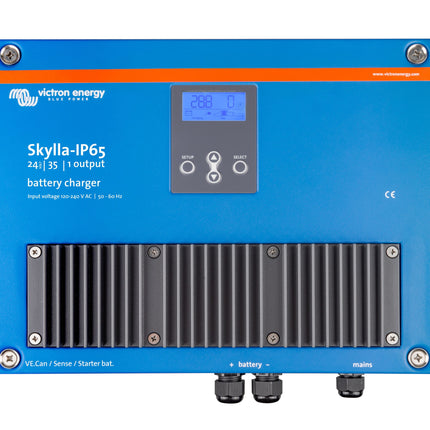

Victron Skylla IP65 charger 24V/35A (1+1 output)

Description

Victron Skylla IP65 charger 24V/35A (1+1 outputs) – intelligent battery charger

The Victron Skylla IP65 charger 24V/35A (1+1 outputs) is an intelligent battery charger from Victron Energy featuring adaptive multi-stage charging. It adjusts the charging voltage to the battery type, ensuring that the battery charges quickly and lasts longer.

Benefits

  • Can remain connected: Automatically switches to maintenance mode and can be left connected throughout the winter.
  • Protection class IP65: Withstands demanding environments in engine rooms and technical compartments.

Application

  • Winter charging and maintenance of batteries in boats and motorhomes.
  • Workshops and garages where batteries need to be charged quickly and gently.
  • Fixed installations where the battery bank is charged via shore power.

Specifications

Specification Details
Input voltage 120 – 240
Input voltage range 90 – 265
Max. AC input current 12
Frequency (Hz) 45-65
Power factor 0.98
Charge voltage absorption See table
Charge voltage float See table
Charge voltage storage See table
Charge current main batt. (A) 35
Charge current starter batt. (A) 4
Charge curve, lead-acid 7 stage adaptive
Recommended battery capacity (Ah) 150-350
Charge curve, Li-Ion 2 stage, with on-off control or VE.Can bus control
Temperature sensor Yes
Power supply function Yes
Remote on/off Yes (can be connected to a Li-Ion BMS)
CAN bus communication port Two RJ45 connectors, NMEA2000 protocol
Remote alarm relay DPST AC rating: 240 VAC/4 A
DPST AC rating: 240 VAC/4A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Forced cooling Yes
Protection battery reverse polarity (fuse)
Battery reverse polarity (fuse) over-temperature
Operating temperature -20 to 60 °C (full output current up to 40 °C)
Humidity (non-condensing) max. 95 %
Material and color steel; blue, RAL 5012
Battery connection M6 bolts
Mains connection screw-clamp 6 mm² (AWG 10)
Protection class IP65
Weight 6 (14)
Dimensions (h × w × d) (16 × 10.5 × 6)
Safety EN 60335-1, EN 60335-2-29
Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Nominal voltage 24 V
Item number SKY024035000

Download datasheet (PDF)

Victron Skylla IP65 charger 24V/35A (1+1 output)

Product form

5.889,00 kr Incl. VAT

Køb nu – betal senere. Vælg Klarna ved kassen.

  • Spænding24V
Free pickup in our shop(s)

2-4 day delivery

    Hurtig levering2-4 hverdage på lagervarer
    14 dages returretGælder privatkunder
    Op til 5 års garantiProducentgaranti fra Victron + 24 mdr. reklamationsret
    Dansk teknisk support+45 60 46 84 10

    Sikker betaling med

    • MobilePay
    • Visa
    • Mastercard
    • Maestro
    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • PayPal
    • Shop Pay

    Victron Skylla IP65 charger 24V/35A (1+1 outputs) – intelligent battery chargerThe Victron Skylla IP65 charger 24V/35A (1+1 outputs) is an... Read more

    Warranty and lifespan

    Victron-produkter har op til 5 års producentgaranti fra Victron Energy – ud over din 2 års reklamationsret. Garantien følger Victrons garantivilkår. Har du spørgsmål til garantien, så ring til os på +45 60 46 84 10.

    Delivery and returns

    Delivery in 2-4 business days throughout Denmark. Special batteries and items not in stock may have a delivery time of up to 1 week. 14-day right of return. Read more in our delivery terms and return policy.

    Pay however you like

    Pay with MobilePay, card, Apple Pay, Google Pay or PayPal – or choose Klarna and pay later. All payments are encrypted and handled securely. Read about delivery

    Description

    Victron Skylla IP65 charger 24V/35A (1+1 outputs) – intelligent battery charger

    The Victron Skylla IP65 charger 24V/35A (1+1 outputs) is an intelligent battery charger from Victron Energy featuring adaptive multi-stage charging. It adjusts the charging voltage to the battery type, ensuring that the battery charges quickly and lasts longer.

    Benefits

    • Can remain connected: Automatically switches to maintenance mode and can be left connected throughout the winter.
    • Protection class IP65: Withstands demanding environments in engine rooms and technical compartments.

    Application

    • Winter charging and maintenance of batteries in boats and motorhomes.
    • Workshops and garages where batteries need to be charged quickly and gently.
    • Fixed installations where the battery bank is charged via shore power.

    Specifications

    Specification Details
    Input voltage 120 – 240
    Input voltage range 90 – 265
    Max. AC input current 12
    Frequency (Hz) 45-65
    Power factor 0.98
    Charge voltage absorption See table
    Charge voltage float See table
    Charge voltage storage See table
    Charge current main batt. (A) 35
    Charge current starter batt. (A) 4
    Charge curve, lead-acid 7 stage adaptive
    Recommended battery capacity (Ah) 150-350
    Charge curve, Li-Ion 2 stage, with on-off control or VE.Can bus control
    Temperature sensor Yes
    Power supply function Yes
    Remote on/off Yes (can be connected to a Li-Ion BMS)
    CAN bus communication port Two RJ45 connectors, NMEA2000 protocol
    Remote alarm relay DPST AC rating: 240 VAC/4 A
    DPST AC rating: 240 VAC/4A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
    Forced cooling Yes
    Protection battery reverse polarity (fuse)
    Battery reverse polarity (fuse) over-temperature
    Operating temperature -20 to 60 °C (full output current up to 40 °C)
    Humidity (non-condensing) max. 95 %
    Material and color steel; blue, RAL 5012
    Battery connection M6 bolts
    Mains connection screw-clamp 6 mm² (AWG 10)
    Protection class IP65
    Weight 6 (14)
    Dimensions (h × w × d) (16 × 10.5 × 6)
    Safety EN 60335-1, EN 60335-2-29
    Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
    Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
    Nominal voltage 24 V
    Item number SKY024035000

    Download datasheet (PDF)
