Victron Quattro-II 48V/5000W/70A-50/50

Description

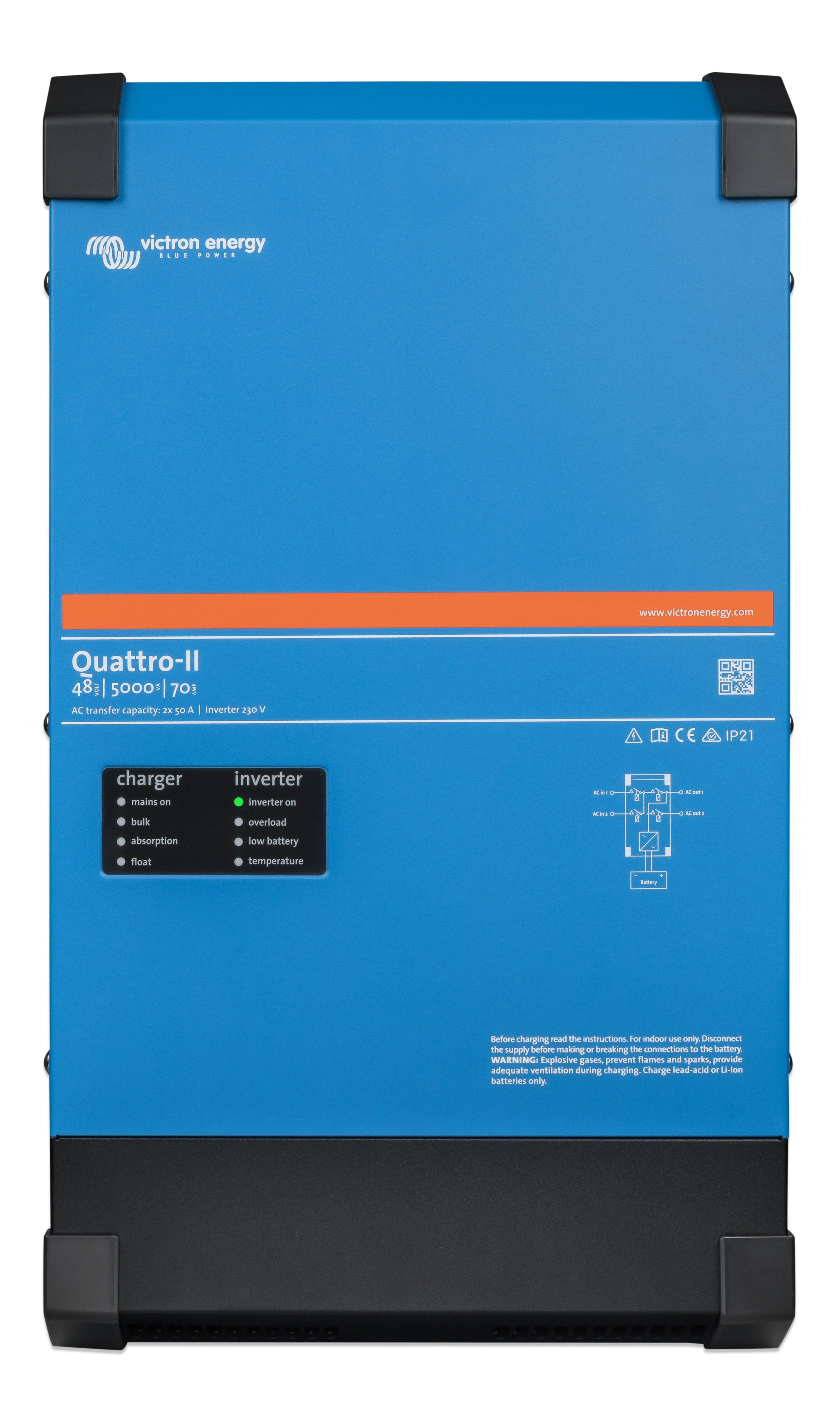

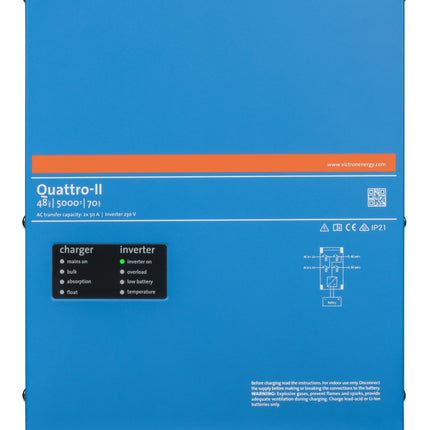

Victron Quattro-II 48V/5000W/70A-50/50 – inverter and battery charger in one unit

The Victron Quattro-II 48V/5000W/70A-50/50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It supplies the installation with pure sine wave 230V and automatically switches between shore power and battery operation.

Advantages

  • PowerAssist and PowerControl: The unit supplements a weak shore power connection with battery power, preventing the site's circuit breaker from tripping.
  • Pure sine wave: Same power quality as the electrical grid — also for sensitive electronics.

Application

  • Camper vans and boats, where both shore power and battery operation must be handled automatically.
  • Off-grid and hybrid systems with solar panels and generators.
  • Emergency power systems and energy storage for residential and commercial use.

Specifications

Specification Details
PowerControl / PowerAssist Yes
AC input Input frequency: 45 - 65 Hz
Max. feed-through current 50 A
Input voltage range 38 – 66 V
Output in inverter mode Frequency: 50 Hz ± 0.1 %
Cont. output power at 25°C / 77°F 5000 VA
Cont. output power at 40°C / 104°F 3700 W
Cont. output power at 65°C / 150°F 3000 W
Max. feed-in power 5000 VA
Peak power 9000 W
Max. efficiency 96 %
Zero-load consumption 18 W
Absorption charge voltage 57.6 V
Float charge voltage 55.2 V
Storage mode 52.8 V
House battery charge current 70 A
Auxiliary output Yes (32 A)
Programmable relay Yes
Protection a - g
VE.Bus communication port for parallel and three-phase operation, remote monitoring, and system integration
General purpose com. port Yes, 2x
Common Characteristics Operating temp.: -40 to +65 °C (-40 – 150°F) / (fan-assisted cooling) / Humidity (non-condensing): max. 95 % / Maximum Altitude 2000 m
Material and color steel, blue RAL 5012 / Protection category: IP21 / Pollution degree 2, OVC3
Battery connections M8 bolts
230 VAC connections screw terminals 13 mm² (6 AWG)
Weight 29 kg
Dimensions (h × w × d) 565 × 320 × 148 mm
Safety EN 60335-1, EN 60335-2-29, IEC62109-1, IEC62109-2
Emission / immunity EN 55014-1, EN 55014-2, / EN-IEC 61000-3-2, EN-IEC 61000-3-3 / IEC 61000-6-1, EN 61000-6-2, / EN 61000-6-3
Emergency power supply (UPS) Please consult certificates on our website.
Anti-islanding Please consult certificates on our website.
Nominal voltage 48 V
Item number QUA482504010

Download datasheet (PDF)
