Victron MultiPlus-II 48/6k5/100-50

Description

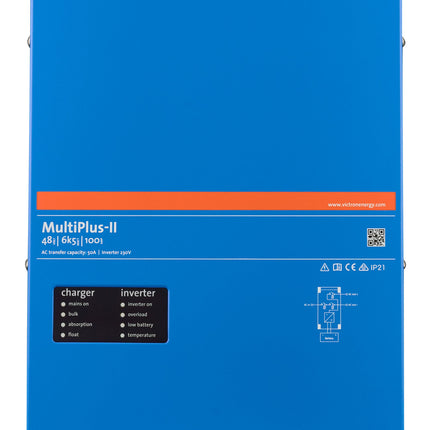

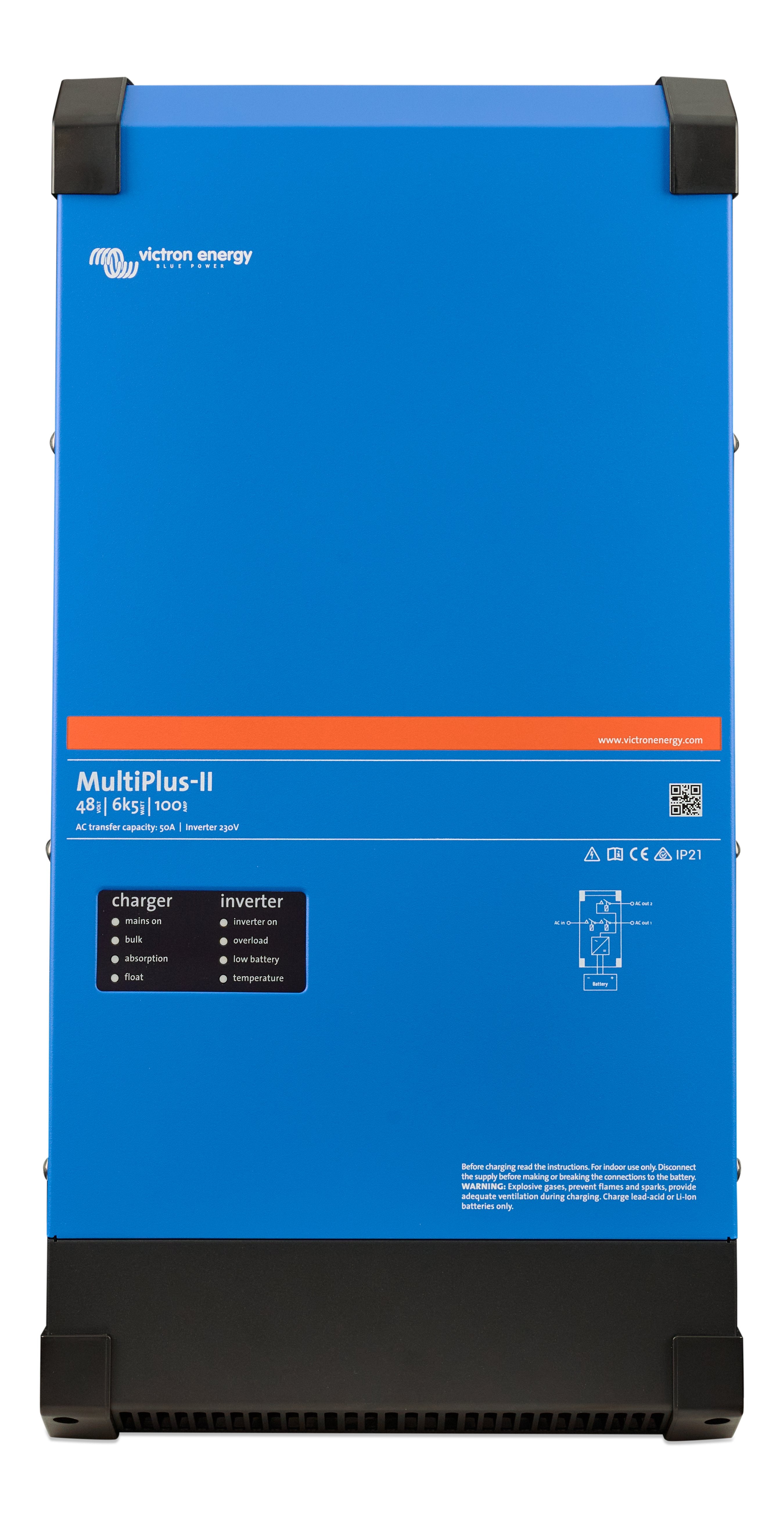

Victron MultiPlus-II 48/6k5/100-50 – inverter and battery charger in one unit

The Victron MultiPlus-II 48/6k5/100-50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It delivers 6 kW of pure sine wave 230V and automatically switches between shore power and battery operation.

Advantages

  • 6 kW output power: Peak power of 11 kW/1min for motor starting and short-term loads.
  • PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the campsite fuse from blowing.
  • Pure sine wave: Same power quality as the grid — also for sensitive electronics.

Applications

  • Camper vans and boats, where both shore power and battery operation must be managed automatically.
  • Off-grid and hybrid systems with solar panels and generators.
  • Emergency power systems and energy storage in residential and commercial settings.

Specifications

Specification Details
PowerControl / PowerAssist Yes
AC input input voltage range: 187 - 265VAC
Max. feed-through current 50 A
Max. AC input current 50 A
DC input voltage range 38 - 60 V
AC output output voltage: 230VAC ± 2 %
Continuous output power at 25 °C 6 kW
Continuous output power at 40 °C 5.7 kW
Continuous output power at 65 °C 4.6 kW
Time-limited power 1 (cold start) 6.5 kW/4h
Time-limited power 2 (cold start) 8 kW/1h
Max. feed-in power 6 kW
Peak power 11 kW/1min
Max. efficiency 96 %
Zero-load consumption 28 W
Charge voltage absorption 57.6 V
Charge voltage float 55.2 V
Storage mode 52.8 V
Max. battery charge current at 25 °C 100 A
Max. battery charge current at 40 °C 95 A
Battery temperature sensor optional. Order number: ASS000001000
Compatible battery chemistries Lithium, Lead-acid and more (3)
Auxiliary output Yes (32 A)
External AC current sensor (optional) 100 A
Programmable relay Yes
Protection a - g
VE.Bus communication port Three-phase and parallel operation, remote monitoring and system integration
General-purpose communication port Yes, 2x
Operating temperature range -40 to +65 °C (-40 – 150°F), fan-assisted cooling
Max. humidity 95 % (non-condensing)
Max. altitude 4000 m with 1 %/100 m power derating above 2000 m
Material and color steel, blue RAL 5012
Protection class IP 21
Battery connections One positive M8 bolt and one negative M8 bolt
AC connections screw terminals 13 mm² (6 AWG)
Weight 29 kg
Dimensions (h × w × d) 644 × 320 × 150 mm
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission / immunity EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible Power Supply (UPS) IEC 62040
Anti-islanding IEC 62116
Nominal voltage 48 V
Quantity per pallet 15 PCS
Item number PMP482605012

Download datasheet (PDF)

Victron MultiPlus-II 48/6k5/100-50

Product form

7.919,00 kr Incl. VAT

Køb nu – betal senere. Vælg Klarna ved kassen.

  • Spænding48V
Free pickup in our shop(s)

2-4 day delivery

    Hurtig levering2-4 hverdage på lagervarer
    14 dages returretGælder privatkunder
    Op til 5 års garantiProducentgaranti fra Victron + 24 mdr. reklamationsret
    Dansk teknisk support+45 60 46 84 10

    Sikker betaling med

    • MobilePay
    • Visa
    • Mastercard
    • Maestro
    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • PayPal
    • Shop Pay

    Victron MultiPlus-II 48/6k5/100-50 – inverter and battery charger in one unitThe Victron MultiPlus-II 48/6k5/100-50 is a combined inverter and battery... Read more

    Warranty and lifespan

    Victron-produkter har op til 5 års producentgaranti fra Victron Energy – ud over din 2 års reklamationsret. Garantien følger Victrons garantivilkår. Har du spørgsmål til garantien, så ring til os på +45 60 46 84 10.

    Delivery and returns

    Delivery in 2-4 business days throughout Denmark. Special batteries and items not in stock may have a delivery time of up to 1 week. 14-day right of return. Read more in our delivery terms and return policy.

    Pay however you like

    Pay with MobilePay, card, Apple Pay, Google Pay or PayPal – or choose Klarna and pay later. All payments are encrypted and handled securely. Read about delivery

    Description

    Victron MultiPlus-II 48/6k5/100-50 – inverter and battery charger in one unit

    The Victron MultiPlus-II 48/6k5/100-50 is a combined inverter and battery charger from Victron Energy — two functions in one unit. It delivers 6 kW of pure sine wave 230V and automatically switches between shore power and battery operation.

    Advantages

    • 6 kW output power: Peak power of 11 kW/1min for motor starting and short-term loads.
    • PowerAssist and PowerControl: The unit supplements a weak shore connection with battery power and prevents the campsite fuse from blowing.
    • Pure sine wave: Same power quality as the grid — also for sensitive electronics.

    Applications

    • Camper vans and boats, where both shore power and battery operation must be managed automatically.
    • Off-grid and hybrid systems with solar panels and generators.
    • Emergency power systems and energy storage in residential and commercial settings.

    Specifications

    Specification Details
    PowerControl / PowerAssist Yes
    AC input input voltage range: 187 - 265VAC
    Max. feed-through current 50 A
    Max. AC input current 50 A
    DC input voltage range 38 - 60 V
    AC output output voltage: 230VAC ± 2 %
    Continuous output power at 25 °C 6 kW
    Continuous output power at 40 °C 5.7 kW
    Continuous output power at 65 °C 4.6 kW
    Time-limited power 1 (cold start) 6.5 kW/4h
    Time-limited power 2 (cold start) 8 kW/1h
    Max. feed-in power 6 kW
    Peak power 11 kW/1min
    Max. efficiency 96 %
    Zero-load consumption 28 W
    Charge voltage absorption 57.6 V
    Charge voltage float 55.2 V
    Storage mode 52.8 V
    Max. battery charge current at 25 °C 100 A
    Max. battery charge current at 40 °C 95 A
    Battery temperature sensor optional. Order number: ASS000001000
    Compatible battery chemistries Lithium, Lead-acid and more (3)
    Auxiliary output Yes (32 A)
    External AC current sensor (optional) 100 A
    Programmable relay Yes
    Protection a - g
    VE.Bus communication port Three-phase and parallel operation, remote monitoring and system integration
    General-purpose communication port Yes, 2x
    Operating temperature range -40 to +65 °C (-40 – 150°F), fan-assisted cooling
    Max. humidity 95 % (non-condensing)
    Max. altitude 4000 m with 1 %/100 m power derating above 2000 m
    Material and color steel, blue RAL 5012
    Protection class IP 21
    Battery connections One positive M8 bolt and one negative M8 bolt
    AC connections screw terminals 13 mm² (6 AWG)
    Weight 29 kg
    Dimensions (h × w × d) 644 × 320 × 150 mm
    Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
    Emission / immunity EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
    Uninterruptible Power Supply (UPS) IEC 62040
    Anti-islanding IEC 62116
    Nominal voltage 48 V
    Quantity per pallet 15 PCS
    Item number PMP482605012

    Download datasheet (PDF)
