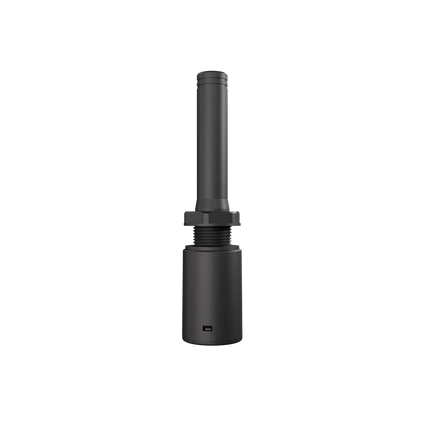

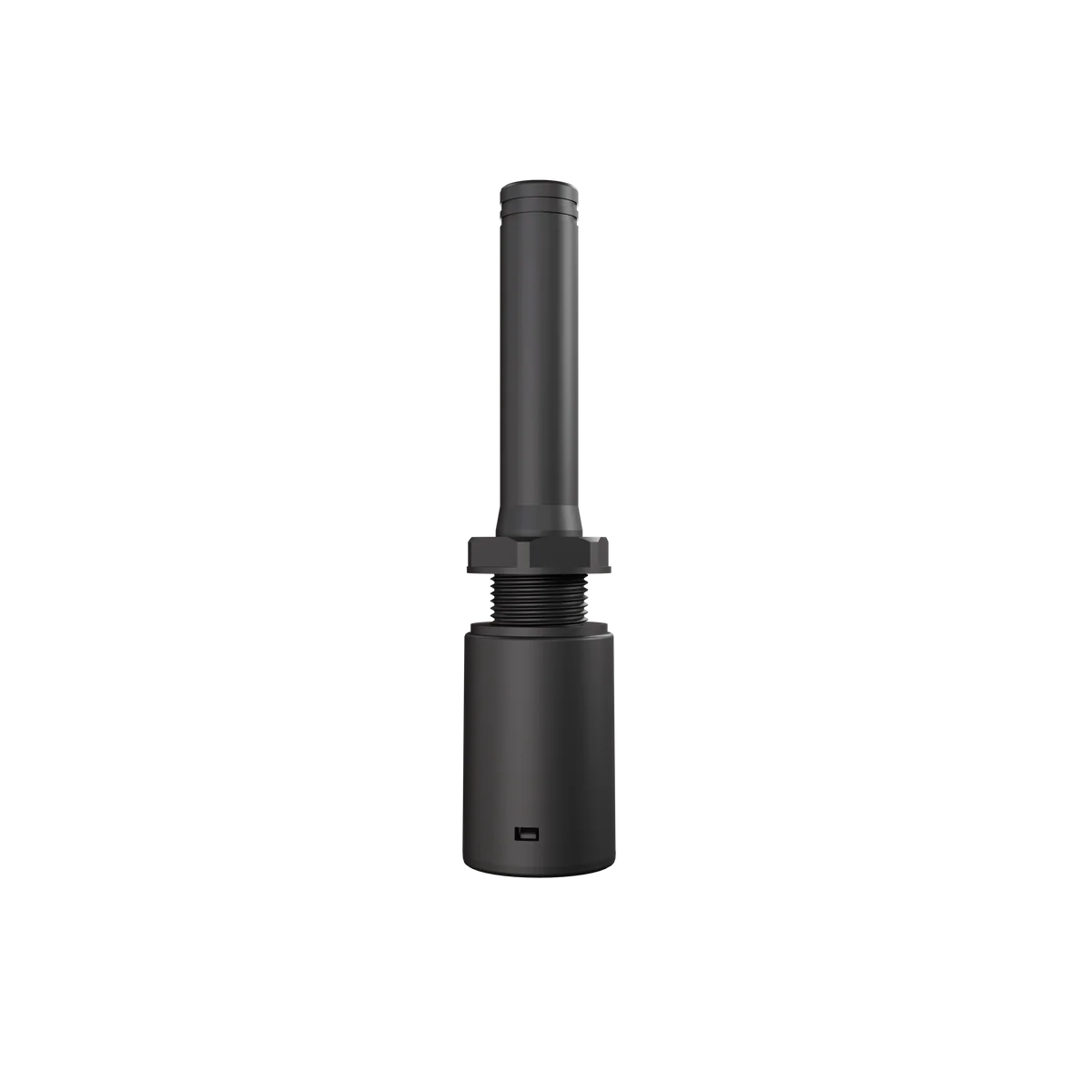

Deye SUN-SMART-TX01 wireless LoRa transmitter

Description

Deye SUN-SMART-TX01 wireless LoRa transmitter – accessory for Deye's wireless energy management.

The Deye SUN-SMART-TX01 is a wireless LoRa transmitter. Developed by Deye, it works in conjunction with Deye inverters and battery storage systems, allowing the entire installation to be controlled and monitored from a single app.

Advantages

  • Input voltage: DC 5V
  • Communication type: LoRa
  • Communication distance: ≈200m (Barrier free)
  • Operating temperature: -40 to +60°C
  • Permitted humidity: 0-100%
  • Ingress protection (IP): IP20 (After installation IP65)
  • Max. installation altitude: ≤4000
  • Dimensions (W×H×D): 137.8x31.3x31.3mm

Application

  • Measurement of import and export at the grid connection
  • Zero export / export limitation to the power grid
  • Precise control of battery charging based on actual household consumption

Specifications

Input voltage DC 5V
Communication type LoRa
Communication distance ≈200m (Barrier free)
Operating temperature -40 to +60°C
Permitted humidity 0-100%
Ingress protection (IP) IP20 (After installation IP65)
Max. installation altitude ≤4000
Dimensions (W×H×D) 137.8x31.3x31.3mm
Weight 45.8g
Warranty 2 years
Standard IEC/EN 62368-1
Frequency range 863MHz-870MHz
Antenna Built-in
Antenna gain 0.56dBi

Item number: SUN-SMART-TX01

Download datasheet (PDF)

Official product page at Deye

Deye SUN-SMART-TX01 wireless LoRa transmitter

Product form

1.030,00 kr Incl. VAT

Køb nu – betal senere. Vælg Klarna ved kassen.

Free pickup in our shop(s)

2-4 day delivery

    Hurtig levering2-4 hverdage på lagervarer
    14 dages returretGælder privatkunder
    Op til 10 års garantiProducentgaranti fra Deye + 24 mdr. reklamationsret
    Dansk teknisk support+45 60 46 84 10

    Sikker betaling med

    • MobilePay
    • Visa
    • Mastercard
    • Maestro
    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • PayPal
    • Shop Pay

    Deye SUN-SMART-TX01 wireless LoRa transmitter – accessory for Deye's wireless energy management.The Deye SUN-SMART-TX01 is a wireless LoRa transmitter. Developed... Read more

    Warranty and lifespan

    Deye-produkter har op til 10 års producentgaranti fra Deye – ud over din 2 års reklamationsret. Den præcise garantiperiode afhænger af produktet og følger Deyes garantivilkår. Har du spørgsmål til garantien, så ring til os på +45 60 46 84 10.

    Delivery and returns

    Delivery in 2-4 business days throughout Denmark. Special batteries and items not in stock may have a delivery time of up to 1 week. 14-day right of return. Read more in our delivery terms and return policy.

    Pay however you like

    Pay with MobilePay, card, Apple Pay, Google Pay or PayPal – or choose Klarna and pay later. All payments are encrypted and handled securely. Read about delivery

    Description

    Deye SUN-SMART-TX01 wireless LoRa transmitter – accessory for Deye's wireless energy management.

    The Deye SUN-SMART-TX01 is a wireless LoRa transmitter. Developed by Deye, it works in conjunction with Deye inverters and battery storage systems, allowing the entire installation to be controlled and monitored from a single app.

    Advantages

    • Input voltage: DC 5V
    • Communication type: LoRa
    • Communication distance: ≈200m (Barrier free)
    • Operating temperature: -40 to +60°C
    • Permitted humidity: 0-100%
    • Ingress protection (IP): IP20 (After installation IP65)
    • Max. installation altitude: ≤4000
    • Dimensions (W×H×D): 137.8x31.3x31.3mm

    Application

    • Measurement of import and export at the grid connection
    • Zero export / export limitation to the power grid
    • Precise control of battery charging based on actual household consumption

    Specifications

    Input voltage DC 5V
    Communication type LoRa
    Communication distance ≈200m (Barrier free)
    Operating temperature -40 to +60°C
    Permitted humidity 0-100%
    Ingress protection (IP) IP20 (After installation IP65)
    Max. installation altitude ≤4000
    Dimensions (W×H×D) 137.8x31.3x31.3mm
    Weight 45.8g
    Warranty 2 years
    Standard IEC/EN 62368-1
    Frequency range 863MHz-870MHz
    Antenna Built-in
    Antenna gain 0.56dBi

    Item number: SUN-SMART-TX01

    Download datasheet (PDF)

    Official product page at Deye
