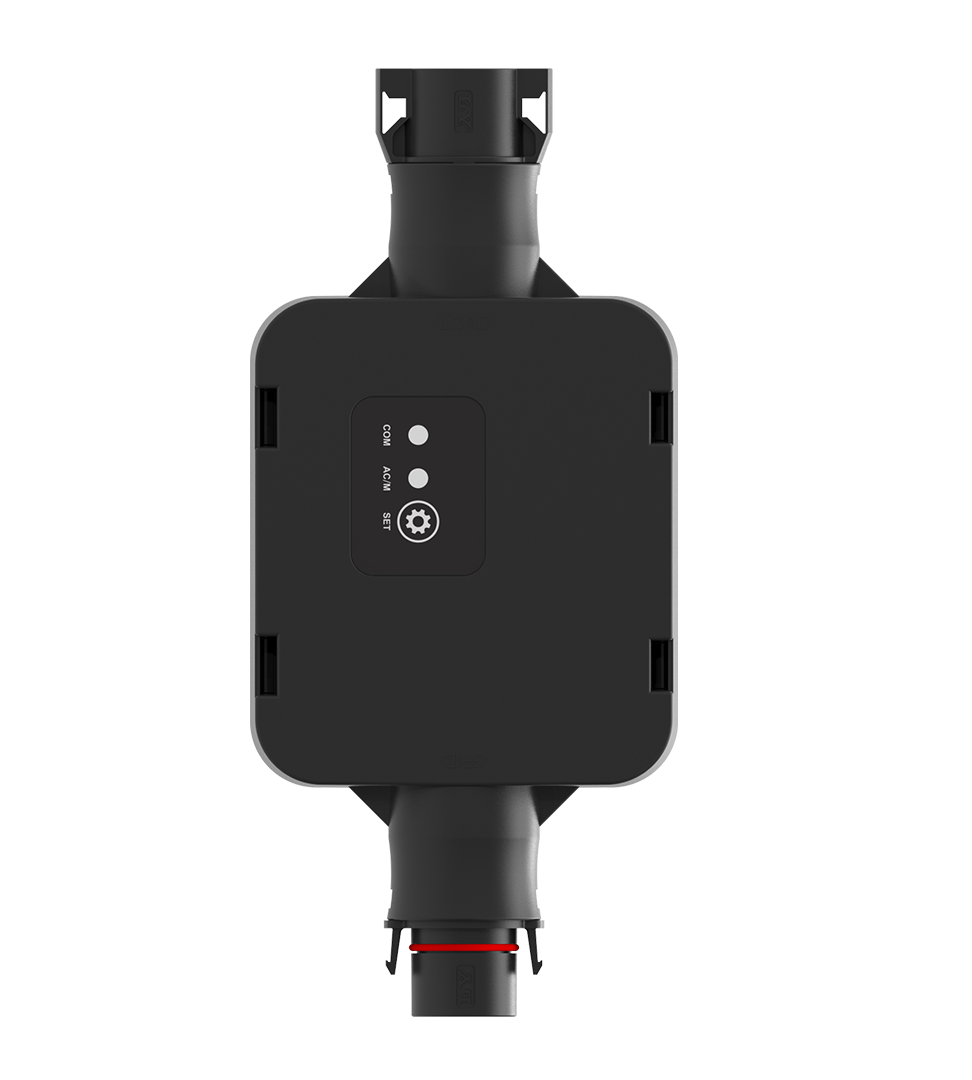

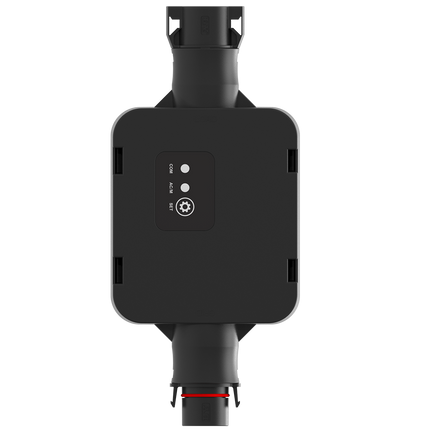

Deye SUN-SMART-SWITCH01P3 smart switch 3-phase 25 A IP65

Description

Deye SUN-SMART-SWITCH01P3 3-phase smart switch 25 A IP65 – smart control of your loads.

The Deye SUN-SMART-SWITCH01P3 is a 3-phase 25 A IP65 smart switch. It is developed by Deye and works with Deye inverters and battery storage systems, allowing the entire system to be controlled and monitored from a single app.

Advantages

  • Voltage range: 94-238V a.c. (phase voltage)
  • Connection type: L1/N (1-phase), L1/L2/L3/N (3-phase)
  • Max. current: 25A a.c. (phase current)
  • Frequency and range: 50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz)
  • Connection: Connector type
  • Communication type: LoRa
  • LoRa range: ≈200m (barrier-free)
  • Operating temperature: -40 to +45°C

Application

  • Control of non-critical loads based on solar production
  • Automatic activation of heaters, heat pumps, or charging stations
  • Smart load distribution in Deye's energy management system

Specifications

Voltage range 94-238V a.c. (phase voltage)
Connection type L1/N (1-phase), L1/L2/L3/N (3-phase)
Max. current 25A a.c. (phase current)
Frequency and range 50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz)
Connection Connector type
Communication type LoRa
LoRa range ≈200m (barrier-free)
Operating temperature -40 to +45°C
Permissible humidity 0-100 % RH
Ingress protection (IP) IP65
Protection class Class I
Max. installation altitude ≤4000m
Dimensions (W×H×D) 96.7x204.7x37.7mm
Weight 0.4kg
Warranty 2 years
Standard IEC/EN 61010-1
Frequency range 863MHz-870MHz
Antenna Built-in antenna
Antenna gain 1.58dBi@868MHz

Item number: SUN-SMART-SWITCH01P3

Download datasheet (PDF)

Official product page at Deye
