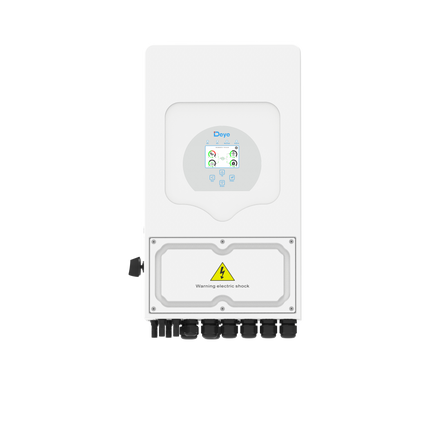

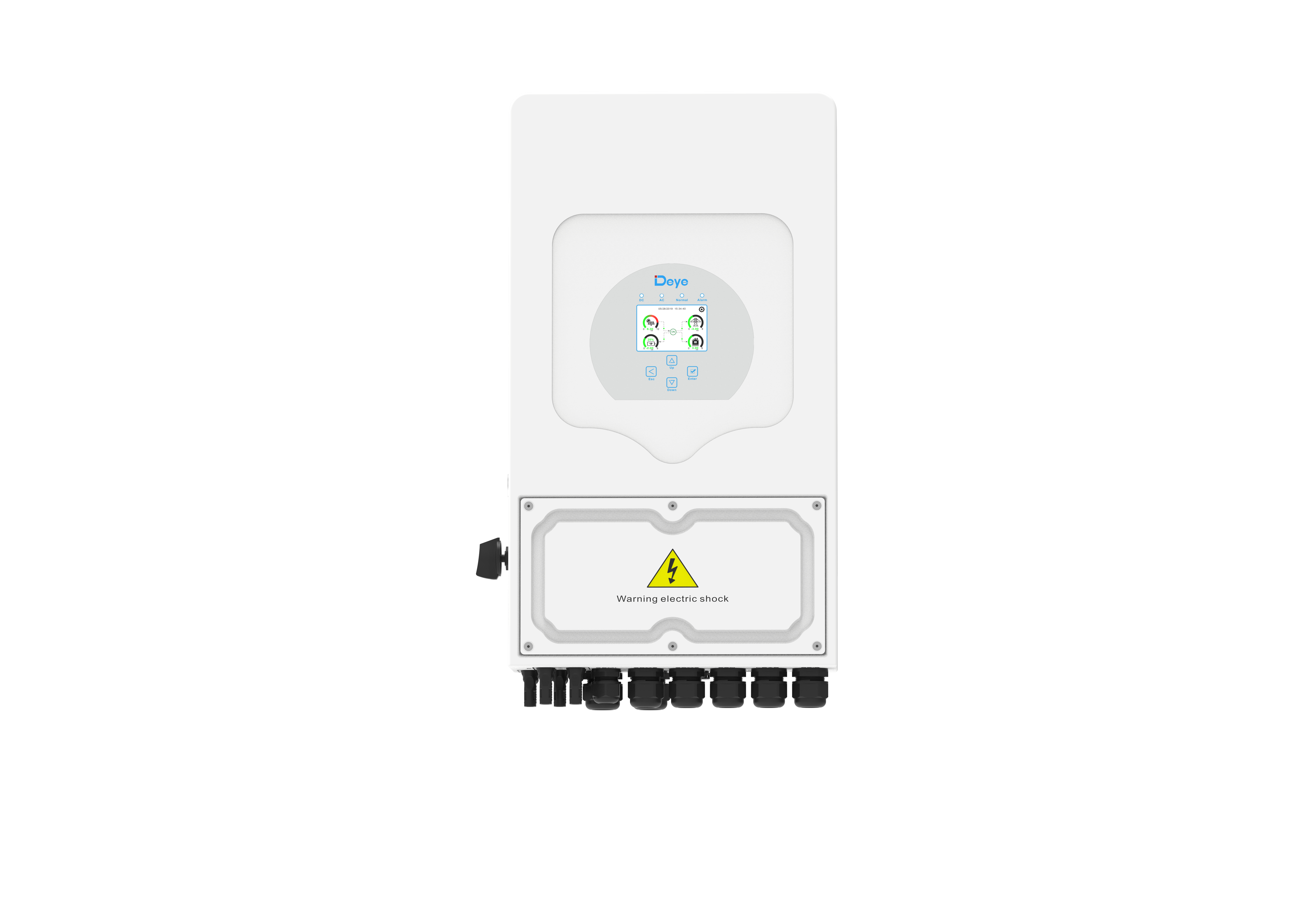

Deye SUN-3.6K-SG05LP1-EU-AM2-P hybrid inverter 3.6 kW 1-phase

Description

Deye SUN-3.6K-SG05LP1-EU-AM2-P hybrid inverter 3.6 kW single-phase – solar inverter, battery charger and emergency power in one unit.

The Deye SUN-3.6K-SG05LP1-EU-AM2-P is a 3.6 kW single-phase hybrid inverter that combines a solar inverter, battery charger, and emergency power supply in one unit. With 2 MPPT trackers and up to 7,200 W of connected solar power, it can both work with the grid and continue to power the house if the power goes out. This means you store your own solar energy in the battery and use it when you need it yourself – instead of selling it cheaply to the grid.

Advantages

  • Nominal power 3,600 W
  • 2 independent MPPT trackers for flexible string configuration
  • Up to 7,200 W of solar power can be connected
  • Max. charge/discharge current 90 A for the battery
  • Peak power in off-grid mode: 2 × nominal power for 10 s
  • Efficiency up to 97.6 %
  • Ingress protection IP65 – can be mounted outdoors
  • Built-in LCD display for local operation and monitoring
  • Communication via WiFi, RS485, CAN
  • Ready for remote monitoring via Deye Cloud / SOLARMAN (requires data logger)

Application

  • Solar PV systems with battery storage in private homes and small businesses
  • Upgrading existing solar PV systems with battery (AC- or DC-coupled)
  • Emergency power and backup during power outages
  • Load shifting – charge the battery when electricity is cheap and use it when prices peak

Specifications

Battery type Lead-acid or lithium-ion
Battery voltage range 40-60 V
Max. charge/discharge current 90 A
Lithium battery charging strategy Automatic adaptation to BMS
Number of battery inputs 1
Max. connected PV power 7,200 W
Max. PV input power 5,760 W
Max. PV input voltage 500 V
Start-up voltage 125 V
MPPT voltage range 150-425 V
Nominal PV input voltage 370 V
Max. PV operating current 18+18 A
Max. short-circuit current, input 27+27 A
Number of MPPT / strings per MPPT 2/1+1
Nominal AC input/output power 3,600 W
Max. AC input/output power (VA) 3,960 VA
Nominal AC input/output current 16.4/15.7 A
Max. AC input/output current 18/17.2 A
Max. continuous AC pass-through (grid to load) 35 A
Peak power (off-grid) 2 × nominal power for 10 s
Nominal input/output voltage 220V/230V 0.85Un-1.1Un L+N+PE
Nominal grid frequency / range 50/45-55，60/55-65 Hz
Power factor, adjustment range 0.8 leading – 0.8 lagging
Harmonic current distortion (THDi) <3 % (of nominal power)
DC injection current <0.5 %ln
Max. efficiency 97.6 %
Euro-efficiency 96.5 %
MPPT efficiency ＞99 %
Integrated protection DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, arc fault detection (AFCI) (optional), anti-islanding protection, DC switch, insulation monitoring, residual current monitoring
Surge protection Type II(DC), Type II(AC)
Display LCD display
Communication interface WiFi, RS485, CAN
Operating temperature -40 to +60°C, >45°C derating
Permissible humidity 0~100 %
Max. installation altitude 2,000m
Noise level ＜45 dB
Ingress protection (IP) IP65
Inverter topology Non-isolated (solar), isolated (battery)
Overvoltage category OVC II(DC), OVC III(AC)
Dimensions (W×H×D) 330×580×232 (excl. connectors and brackets)
Weight 24.9 kg
Warranty 5 years / 10 years (warranty period depends on the inverter's installation location – see Deye's warranty policy)
Cooling Intelligent air cooling
Grid standards IEC 61727, IEC 62116, CEI 0-21, EN 50549，NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
