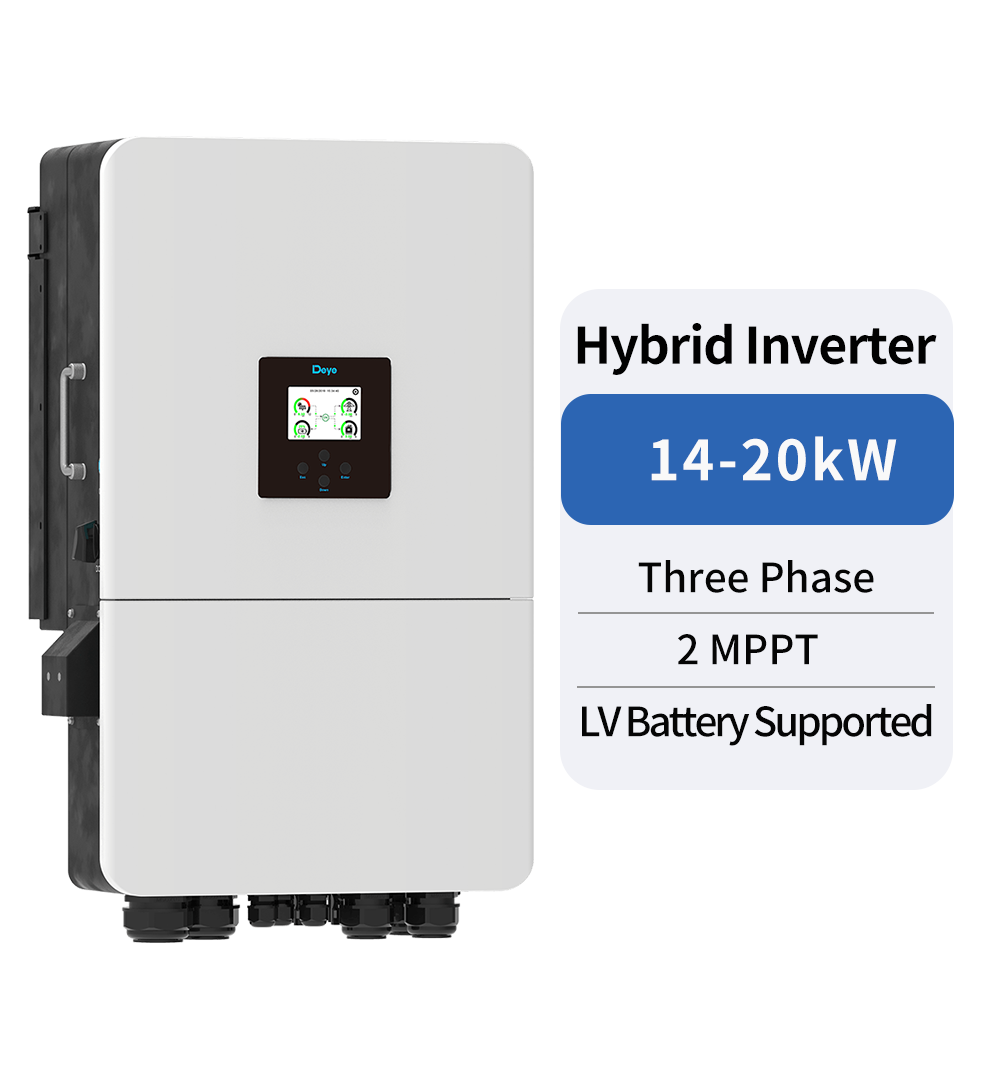

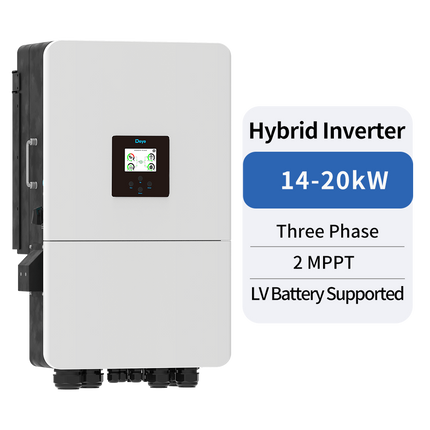

Deye SUN-15K-SG05LP3-EU-SM2 hybrid inverter 15 kW 3-phase

Description

Deye SUN-15K-SG05LP3-EU-SM2 hybrid inverter 15 kW 3-phase – solar inverter, battery charger and backup power in one unit.

The Deye SUN-15K-SG05LP3-EU-SM2 is a 15 kW 3-phase hybrid inverter that combines a solar inverter, battery charger and backup power supply in one unit. With 2 MPPT trackers and up to 30,000 W of connected solar power, it can work together with the grid and keep powering your home if there is a power cut. This means you store your own solar power in the battery and use it when you need it – instead of selling it cheaply to the grid.

Benefits

  • Rated power 15,000 W
  • 2 independent MPPT trackers for flexible string configuration
  • Up to 30,000 W of solar power can be connected
  • Max. charge/discharge current of 280 A to the battery
  • Peak power in off-grid mode: 2 × rated power for 10 s
  • Efficiency up to 97.6 %
  • IP65 protection rating – can be installed outdoors
  • Built-in LCD display for local operation and monitoring
  • Communication via WiFi, RS485, CAN
  • Ready for remote monitoring via Deye Cloud / SOLARMAN (requires data logger)

Applications

  • Solar PV systems with battery storage in private homes and small businesses
  • Upgrading existing solar PV systems with a battery (AC- or DC-coupled)
  • Backup power during power cuts
  • Load shifting – charge the battery when electricity is cheap, and use it when the price peaks
  • Three-phase installations, including those with unbalanced loads between the phases

Specifications

Battery type Lead-acid or lithium-ion
Battery voltage range 40-60 V
Max. charge/discharge current 280 A
Charging strategy for lithium battery Automatic adaptation to BMS
Number of battery inputs 2
Max. connected PV power 30,000 W
Max. PV input power 24,000 W
Max. PV input voltage 800 V
Start-up voltage 160 V
MPPT voltage range 160-650 V
Rated PV input voltage 550 V
Max. PV operating current 36+36 A
Max. short-circuit current, input 54+54 A
Number of MPPTs / strings per MPPT 2/2+2
Rated AC input/output power 15,000 W
Max. AC input/output power (VA) 16,500 VA
Rated AC input/output current 22.8/21.8 A
Max. AC input/output current 25/24 A
Max. continuous AC pass-through (grid to load) 70 A
Peak power (off-grid mode) 2 × rated power for 10 s
Power factor, adjustment range 0.8 leading to 0.8 lagging
Rated input/output voltage 220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE
Rated grid frequency / range 50/45-55, 60/55-65 Hz
Total harmonic current distortion (THDi) <3 % (of rated power)
DC injection into grid <0.5 % In
Max. efficiency 97,6 %
Euro efficiency 97,0 %
MPPT efficiency >99 %
Built-in protection DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, load overvoltage protection, earth fault monitoring, arc fault detection (AFCI) (optional), grid monitoring, islanding monitoring, earth fault detection, DC input switch, insulation monitoring on DC terminals, residual current detection (RCD), surge protection
Surge protection Type II(DC), Type II(AC)
Display LCD display
Communication interface WiFi, RS485, CAN
Operating temperature -40 to +60°C, >45°C derating
Permitted humidity 0-100 %
Max. installation altitude 3,000m
Noise level ＜60 dB
Protection rating (IP) IP65
Inverter topology Non-isolated (PV), isolated (battery)
Overvoltage category OVC II(DC), OVC III(AC)
Dimensions (W×H×D) 456×750×268.5 (excl. connectors and bracket)
Weight 51.9 kg
Cooling Intelligent air cooling
Warranty 5 years / 10 years (the warranty period depends on where the inverter is installed – see Deye's warranty policy)
Grid standards IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Item number: SUN-15K-SG05LP3-EU-SM2

Download datasheet (PDF)

Official product page at Deye

Deye SUN-15K-SG05LP3-EU-SM2 hybrid inverter 15 kW 3-phase

Product form

17.999,00 kr Incl. VAT

Køb nu – betal senere. Vælg Klarna ved kassen.

Free pickup in our shop(s)

2-4 day delivery

    Hurtig levering2-4 hverdage på lagervarer
    14 dages returretGælder privatkunder
    Op til 10 års garantiProducentgaranti fra Deye + 24 mdr. reklamationsret
    Dansk teknisk support+45 60 46 84 10

    Sikker betaling med

    • MobilePay
    • Visa
    • Mastercard
    • Maestro
    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • PayPal
    • Shop Pay

    Deye SUN-15K-SG05LP3-EU-SM2 hybrid inverter 15 kW 3-phase – solar inverter, battery charger and backup power in one unit.The Deye SUN-15K-SG05LP3-EU-SM2... Read more

    Warranty and lifespan

    Deye-produkter har op til 10 års producentgaranti fra Deye – ud over din 2 års reklamationsret. Den præcise garantiperiode afhænger af produktet og følger Deyes garantivilkår. Har du spørgsmål til garantien, så ring til os på +45 60 46 84 10.

    Delivery and returns

    Delivery in 2-4 business days throughout Denmark. Special batteries and items not in stock may have a delivery time of up to 1 week. 14-day right of return. Read more in our delivery terms and return policy.

    Pay however you like

    Pay with MobilePay, card, Apple Pay, Google Pay or PayPal – or choose Klarna and pay later. All payments are encrypted and handled securely. Read about delivery

    Description

    Deye SUN-15K-SG05LP3-EU-SM2 hybrid inverter 15 kW 3-phase – solar inverter, battery charger and backup power in one unit.

    The Deye SUN-15K-SG05LP3-EU-SM2 is a 15 kW 3-phase hybrid inverter that combines a solar inverter, battery charger and backup power supply in one unit. With 2 MPPT trackers and up to 30,000 W of connected solar power, it can work together with the grid and keep powering your home if there is a power cut. This means you store your own solar power in the battery and use it when you need it – instead of selling it cheaply to the grid.

    Benefits

    • Rated power 15,000 W
    • 2 independent MPPT trackers for flexible string configuration
    • Up to 30,000 W of solar power can be connected
    • Max. charge/discharge current of 280 A to the battery
    • Peak power in off-grid mode: 2 × rated power for 10 s
    • Efficiency up to 97.6 %
    • IP65 protection rating – can be installed outdoors
    • Built-in LCD display for local operation and monitoring
    • Communication via WiFi, RS485, CAN
    • Ready for remote monitoring via Deye Cloud / SOLARMAN (requires data logger)

    Applications

    • Solar PV systems with battery storage in private homes and small businesses
    • Upgrading existing solar PV systems with a battery (AC- or DC-coupled)
    • Backup power during power cuts
    • Load shifting – charge the battery when electricity is cheap, and use it when the price peaks
    • Three-phase installations, including those with unbalanced loads between the phases

    Specifications

    Battery type Lead-acid or lithium-ion
    Battery voltage range 40-60 V
    Max. charge/discharge current 280 A
    Charging strategy for lithium battery Automatic adaptation to BMS
    Number of battery inputs 2
    Max. connected PV power 30,000 W
    Max. PV input power 24,000 W
    Max. PV input voltage 800 V
    Start-up voltage 160 V
    MPPT voltage range 160-650 V
    Rated PV input voltage 550 V
    Max. PV operating current 36+36 A
    Max. short-circuit current, input 54+54 A
    Number of MPPTs / strings per MPPT 2/2+2
    Rated AC input/output power 15,000 W
    Max. AC input/output power (VA) 16,500 VA
    Rated AC input/output current 22.8/21.8 A
    Max. AC input/output current 25/24 A
    Max. continuous AC pass-through (grid to load) 70 A
    Peak power (off-grid mode) 2 × rated power for 10 s
    Power factor, adjustment range 0.8 leading to 0.8 lagging
    Rated input/output voltage 220/380V, 230/400V 0.85Un-1.1Un 3L+N+PE
    Rated grid frequency / range 50/45-55, 60/55-65 Hz
    Total harmonic current distortion (THDi) <3 % (of rated power)
    DC injection into grid <0.5 % In
    Max. efficiency 97,6 %
    Euro efficiency 97,0 %
    MPPT efficiency >99 %
    Built-in protection DC reverse polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, load overvoltage protection, earth fault monitoring, arc fault detection (AFCI) (optional), grid monitoring, islanding monitoring, earth fault detection, DC input switch, insulation monitoring on DC terminals, residual current detection (RCD), surge protection
    Surge protection Type II(DC), Type II(AC)
    Display LCD display
    Communication interface WiFi, RS485, CAN
    Operating temperature -40 to +60°C, >45°C derating
    Permitted humidity 0-100 %
    Max. installation altitude 3,000m
    Noise level ＜60 dB
    Protection rating (IP) IP65
    Inverter topology Non-isolated (PV), isolated (battery)
    Overvoltage category OVC II(DC), OVC III(AC)
    Dimensions (W×H×D) 456×750×268.5 (excl. connectors and bracket)
    Weight 51.9 kg
    Cooling Intelligent air cooling
    Warranty 5 years / 10 years (the warranty period depends on where the inverter is installed – see Deye's warranty policy)
    Grid standards IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
    Safety / EMC standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

    Item number: SUN-15K-SG05LP3-EU-SM2

    Download datasheet (PDF)

    Official product page at Deye
