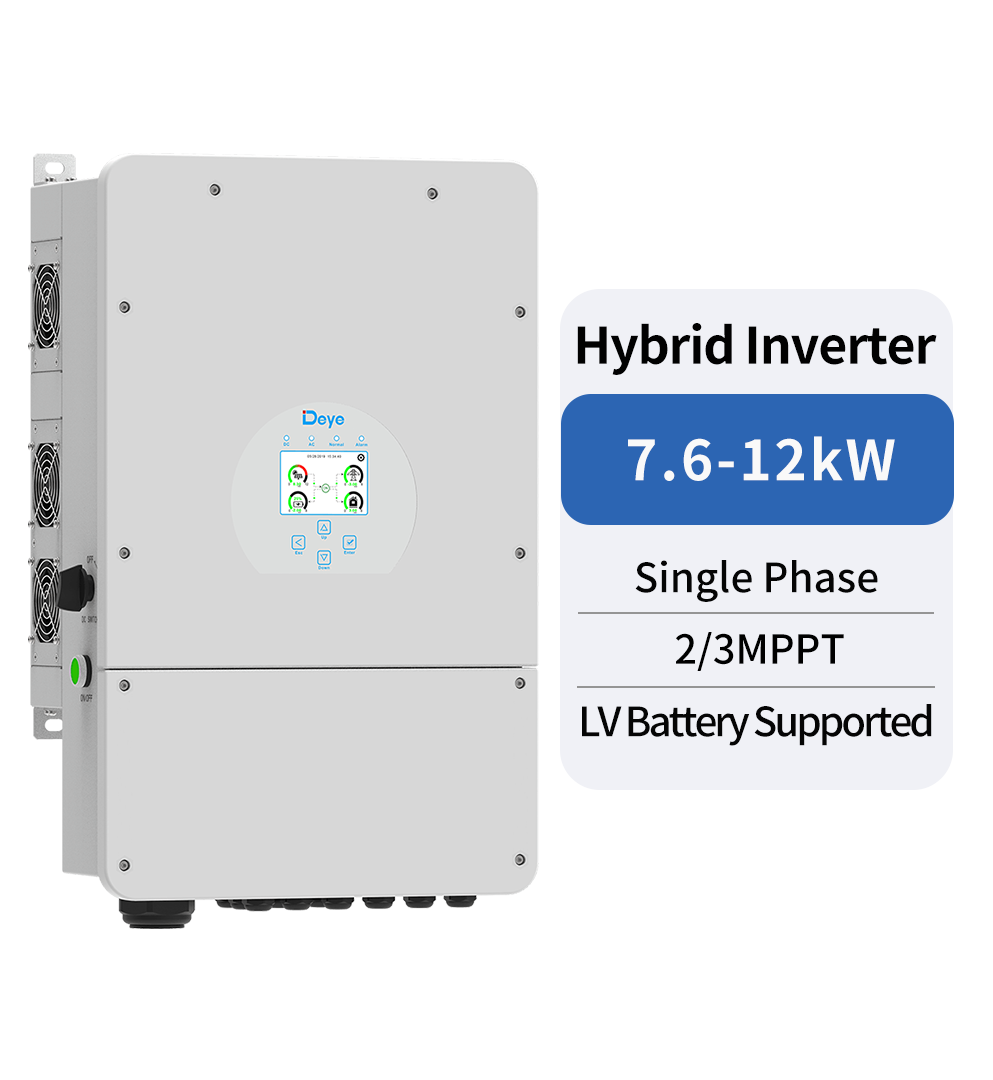

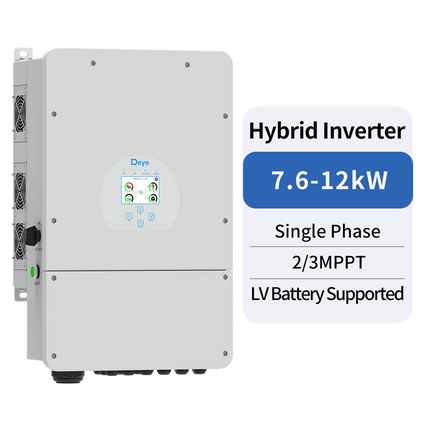

Deye SUN-10K-SG02LP1-EU-AM3 hybrid inverter 10 kW 1-phase

Description

Deye SUN-10K-SG02LP1-EU-AM3 hybrid inverter 10 kW single-phase – solar inverter, battery charger, and emergency power in one unit.

The Deye SUN-10K-SG02LP1-EU-AM3 is a 10 kW single-phase hybrid inverter that combines a solar inverter, battery charger, and emergency power supply into one unit. With 3 MPPT trackers and up to 20,000 W of connected solar capacity, it can both work in tandem with the grid and continue to power the house if the electricity goes out. This means you store your own solar energy in the battery and use it when you actually need it – instead of selling it cheaply to the grid.

Advantages

  • Nominal power 10,000 W
  • 3 independent MPPT trackers for flexible string configuration
  • Up to 20,000 W solar capacity can be connected
  • Max. charging/discharging current 220 A to the battery
  • Peak power in off-grid mode: 2 × nominal power for 10 s
  • Efficiency up to 97.6 %
  • Protection class IP65 – suitable for outdoor installation
  • Communication via RS485/RS232/CAN
  • Ready for remote monitoring via Deye Cloud / SOLARMAN (requires data logger)

Application

  • Solar power systems with battery storage for private homes and small businesses
  • Upgrading existing solar systems with a battery (AC- or DC-coupled)
  • Emergency power and backup during power outages
  • Load shifting – charge the battery when electricity is cheap, and use it when the price peaks

Specifications

Battery type Lead-acid or lithium-ion
Battery voltage range 40-60 V
Max. charging current 220 A
Max. discharging current 220 A
Charging strategy for lithium battery Automatic adaptation to BMS
Number of battery inputs 1
Max. connected PV power 20,000 W
Max. DC input power 16,000 W
Max. DC input voltage 500 V
Start-up voltage 125 V
MPPT voltage range 150-425 V
Nominal DC input voltage 370 V
Max. PV operating current 26+26+26 A
Max. short-circuit current, input 44+44+44 A
Number of MPPT / strings per MPPT 3/2+2+2
Nominal AC input/output power 10,000 W
Max. AC input/output power (VA) 11,000 VA
Peak power (off-grid) 2 × nominal power for 10 s
Nominal AC input/output current 45.5/43.5 A
Max. AC input/output current 45.5/43.5 A
Max. continuous AC pass-through (grid to load) 60 A
Power factor, adjustment range 0.8 leading to 0.8 lagging
Nominal input/output voltage 220/230 0.85Un-1.1Un
Nominal grid frequency / range 50/45-55, 60/55-65 Hz
Grid connection L+N+PE
Total harmonic distortion (THDi) <3 % (of nominal power)
DC injection current <0.5 %ln
Max. efficiency 97.6 %
Euro efficiency 96.5 %
MPPT efficiency >99 %
Built-in protection Reverse DC polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, arc fault detection (AFCI) (optional), anti-islanding protection, DC switch, insulation monitoring, residual current monitoring
Surge protection Type II(DC), Type II(AC)
Communication interface RS485/RS232/CAN
Monitoring GPRS/WiFi/Bluetooth/4G/LAN (optional)
Operating temperature -40 to +60°C, >45°C power derating
Permissible humidity 0~100 %
Max. installation altitude 2,000m
Noise level <45
Protection class (IP) IP65
Inverter topology Non-isolated
Overvoltage category OVC II(DC), OVC IV(AC)
Dimensions (W×H×D) 420×670×233 (excl. connectors and brackets)
Weight 35.6 kg
Warranty 5 years / 10 years (warranty period depends on the inverter's installation location – see Deye's warranty policy)
Cooling Intelligent air cooling
Grid standards VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety / EMC standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Item number: SUN-10K-SG02LP1-EU-AM3

Download datasheet (PDF)

Official product page at Deye

Deye SUN-10K-SG02LP1-EU-AM3 hybrid inverter 10 kW 1-phase

Product form

15.499,00 kr Incl. VAT

Køb nu – betal senere. Vælg Klarna ved kassen.

Free pickup in our shop(s)

2-4 day delivery

    Hurtig levering2-4 hverdage på lagervarer
    14 dages returretGælder privatkunder
    Op til 10 års garantiProducentgaranti fra Deye + 24 mdr. reklamationsret
    Dansk teknisk support+45 60 46 84 10

    Sikker betaling med

    • MobilePay
    • Visa
    • Mastercard
    • Maestro
    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • PayPal
    • Shop Pay

    Deye SUN-10K-SG02LP1-EU-AM3 hybrid inverter 10 kW single-phase – solar inverter, battery charger, and emergency power in one unit.The Deye SUN-10K-SG02LP1-EU-AM3... Read more

    Warranty and lifespan

    Deye-produkter har op til 10 års producentgaranti fra Deye – ud over din 2 års reklamationsret. Den præcise garantiperiode afhænger af produktet og følger Deyes garantivilkår. Har du spørgsmål til garantien, så ring til os på +45 60 46 84 10.

    Delivery and returns

    Delivery in 2-4 business days throughout Denmark. Special batteries and items not in stock may have a delivery time of up to 1 week. 14-day right of return. Read more in our delivery terms and return policy.

    Pay however you like

    Pay with MobilePay, card, Apple Pay, Google Pay or PayPal – or choose Klarna and pay later. All payments are encrypted and handled securely. Read about delivery

    Description

    Deye SUN-10K-SG02LP1-EU-AM3 hybrid inverter 10 kW single-phase – solar inverter, battery charger, and emergency power in one unit.

    The Deye SUN-10K-SG02LP1-EU-AM3 is a 10 kW single-phase hybrid inverter that combines a solar inverter, battery charger, and emergency power supply into one unit. With 3 MPPT trackers and up to 20,000 W of connected solar capacity, it can both work in tandem with the grid and continue to power the house if the electricity goes out. This means you store your own solar energy in the battery and use it when you actually need it – instead of selling it cheaply to the grid.

    Advantages

    • Nominal power 10,000 W
    • 3 independent MPPT trackers for flexible string configuration
    • Up to 20,000 W solar capacity can be connected
    • Max. charging/discharging current 220 A to the battery
    • Peak power in off-grid mode: 2 × nominal power for 10 s
    • Efficiency up to 97.6 %
    • Protection class IP65 – suitable for outdoor installation
    • Communication via RS485/RS232/CAN
    • Ready for remote monitoring via Deye Cloud / SOLARMAN (requires data logger)

    Application

    • Solar power systems with battery storage for private homes and small businesses
    • Upgrading existing solar systems with a battery (AC- or DC-coupled)
    • Emergency power and backup during power outages
    • Load shifting – charge the battery when electricity is cheap, and use it when the price peaks

    Specifications

    Battery type Lead-acid or lithium-ion
    Battery voltage range 40-60 V
    Max. charging current 220 A
    Max. discharging current 220 A
    Charging strategy for lithium battery Automatic adaptation to BMS
    Number of battery inputs 1
    Max. connected PV power 20,000 W
    Max. DC input power 16,000 W
    Max. DC input voltage 500 V
    Start-up voltage 125 V
    MPPT voltage range 150-425 V
    Nominal DC input voltage 370 V
    Max. PV operating current 26+26+26 A
    Max. short-circuit current, input 44+44+44 A
    Number of MPPT / strings per MPPT 3/2+2+2
    Nominal AC input/output power 10,000 W
    Max. AC input/output power (VA) 11,000 VA
    Peak power (off-grid) 2 × nominal power for 10 s
    Nominal AC input/output current 45.5/43.5 A
    Max. AC input/output current 45.5/43.5 A
    Max. continuous AC pass-through (grid to load) 60 A
    Power factor, adjustment range 0.8 leading to 0.8 lagging
    Nominal input/output voltage 220/230 0.85Un-1.1Un
    Nominal grid frequency / range 50/45-55, 60/55-65 Hz
    Grid connection L+N+PE
    Total harmonic distortion (THDi) <3 % (of nominal power)
    DC injection current <0.5 %ln
    Max. efficiency 97.6 %
    Euro efficiency 96.5 %
    MPPT efficiency >99 %
    Built-in protection Reverse DC polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, arc fault detection (AFCI) (optional), anti-islanding protection, DC switch, insulation monitoring, residual current monitoring
    Surge protection Type II(DC), Type II(AC)
    Communication interface RS485/RS232/CAN
    Monitoring GPRS/WiFi/Bluetooth/4G/LAN (optional)
    Operating temperature -40 to +60°C, >45°C power derating
    Permissible humidity 0~100 %
    Max. installation altitude 2,000m
    Noise level <45
    Protection class (IP) IP65
    Inverter topology Non-isolated
    Overvoltage category OVC II(DC), OVC IV(AC)
    Dimensions (W×H×D) 420×670×233 (excl. connectors and brackets)
    Weight 35.6 kg
    Warranty 5 years / 10 years (warranty period depends on the inverter's installation location – see Deye's warranty policy)
    Cooling Intelligent air cooling
    Grid standards VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
    Safety / EMC standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

    Item number: SUN-10K-SG02LP1-EU-AM3

    Download datasheet (PDF)

    Official product page at Deye
