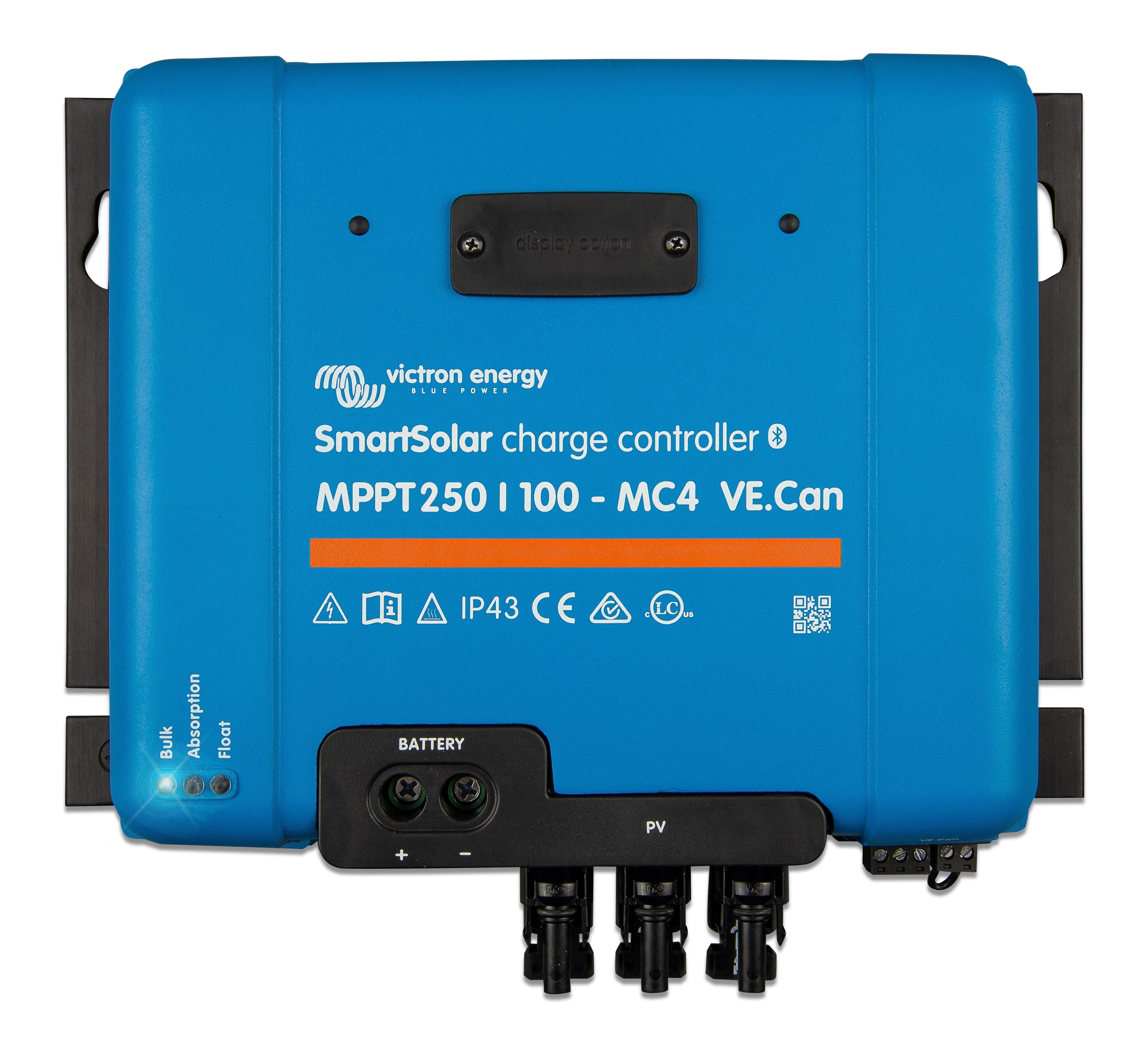

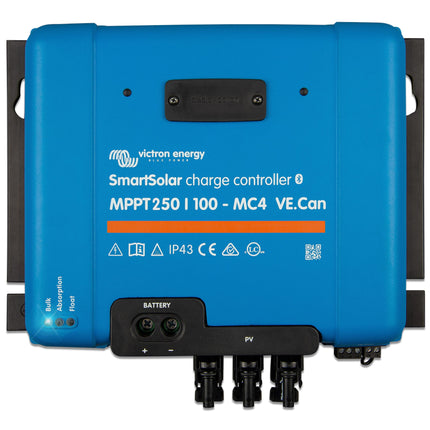

Victron SmartSolar MPPT 250/100-MC4 VE.Can

Description

Victron SmartSolar MPPT 250/100-MC4 VE.Can – MPPT solar charge controller for efficient solar charging

The Victron SmartSolar MPPT 250/100-MC4 VE.Can is an MPPT solar charge controller from Victron Energy for 12/24/48V automatic selection, 36V: manual select battery banks. It regulates solar panel performance, handles a PV open-circuit voltage of up to 250 V absolute maximum coldest conditions / 245 V start-up and operating maximum, and built-in Bluetooth allows you to monitor operation and change settings directly from the VictronConnect app.

Advantages

  • Built-in Bluetooth: Set up, monitor, and update firmware wirelessly in the VictronConnect app — no extra display required.
  • Up to 99% efficiency: The MPPT tracker continuously adjusts the working point so that the panels perform optimally under changing light conditions.
  • Automatic voltage selection: The controller automatically detects whether the battery bank is 12/24/48V automatic selection, 36V: manual select.
  • Multiple charging algorithms and custom profile: Adjustable absorption and float voltages to suit lead-acid, AGM, gel, and lithium batteries.
  • Up to 250 V absolute maximum coldest conditions / 245 V start-up and operating maximum PV open-circuit voltage: Provides the freedom to connect more panels in series and run longer cables.
  • Encapsulated electronics (IP43 (electronics), IP22 (connection area)): Can be mounted in technical rooms, boats, motorhomes, and site trailers.

Application

  • Motorhomes, caravans, and vans with solar panels on the roof.
  • Boats, where the service battery needs to be kept fully charged throughout the season.
  • Summer cottages, allotments, and site trailers without a permanent mains connection.

Specifications

Specification Details
Battery voltage 12/24/48V automatic selection, 36V: manual select
Max. battery current 100 A
Nominal solar power, 12V 1450 W
Nominal solar power, 24V 2900 W
Nominal solar power, 36V 4350 W
Nominal solar power, 48V 5800 W
Max. PV short-circuit current 70 A
Max. PV open-circuit voltage 250 V absolute maximum coldest conditions / 245 V start-up and operating maximum
Max. efficiency 99 %
Self-consumption 12V: less than 35 mA / 48V: less than 20 mA
Absorption charging voltage Default setting: 14.4 V / 28.8 V / 57.6 V (adjustable)
Float charging voltage Default setting: 13.8 V / 27.6 V / 55.2 V (adjustable)
Equalization charging voltage Default setting: 16.2 V / 32.4 V / 64.8 V (adjustable)
Charging algorithm Multi-stage adaptive (eight pre-programmed algorithms) or custom algorithm
Temperature compensation -16 mV/°C / -32 mV/°C / -48 mV/°C / -64 mV/°C
Protection PV reverse polarity / output short circuit / overtemperature
Operating temperature -30 °C to +60 °C (full performance up to 40 °C)
Humidity 95 %, non-condensing
Max. altitude 5000 m (full performance up to 2000 m)
Environmental conditions indoor, unheated
Pollution degree PD3
Data communication VE.Can ports 5 / VE.Direct port 5 / Bluetooth, via VictronConnect app
Remote on/off Yes, 2-pole terminals
Programmable relay DPST AC rating: 4 A up to 240Vac / DC rating: 4 A up to 35Vdc, 1 A up to 60Vdc
Parallel operation Yes, parallel synchronised operation via VE.Can (max. 25 units) or via Bluetooth (max. 10 units).
Color blue (RAL 5012)
PV terminals Tr models: 35 mm² / AWG2 / MC4 models: 3 pairs of MC4 connectors 3.6
Battery terminals 35 mm² / AWG2
Protection class IP43 (electronics), IP22 (connection area)
Weight 4.5 kg
Dimensions (h × w × d) Tr models: 216 × 295 × 103 mm / MC4 models: 246 × 295 × 103 mm
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Model Part number
SmartSolar 150/85-Tr VE.Can SCC115085412
SmartSolar 150/85-MC4 VE.Can SCC115085512
SmartSolar 150/100-Tr VE.Can SCC115110412
SmartSolar 150/100-MC4 VE.Can SCC115110512
Nominal voltage 12/24/48 V
Item number SCC125110512

Download datasheet (PDF)

Victron SmartSolar MPPT 250/100-MC4 VE.Can

Product form

5.499,00 kr Incl. VAT

Køb nu – betal senere. Vælg Klarna ved kassen.

  • Spænding12V / 24V / 48V
Free pickup in our shop(s)

2-4 day delivery

    Hurtig levering2-4 hverdage på lagervarer
    14 dages returretGælder privatkunder
    Op til 5 års garantiProducentgaranti fra Victron + 24 mdr. reklamationsret
    Dansk teknisk support+45 60 46 84 10

    Sikker betaling med

    • MobilePay
    • Visa
    • Mastercard
    • Maestro
    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • PayPal
    • Shop Pay

    Victron SmartSolar MPPT 250/100-MC4 VE.Can – MPPT solar charge controller for efficient solar chargingThe Victron SmartSolar MPPT 250/100-MC4 VE.Can is... Read more

    Warranty and lifespan

    Victron-produkter har op til 5 års producentgaranti fra Victron Energy – ud over din 2 års reklamationsret. Garantien følger Victrons garantivilkår. Har du spørgsmål til garantien, så ring til os på +45 60 46 84 10.

    Delivery and returns

    Delivery in 2-4 business days throughout Denmark. Special batteries and items not in stock may have a delivery time of up to 1 week. 14-day right of return. Read more in our delivery terms and return policy.

    Pay however you like

    Pay with MobilePay, card, Apple Pay, Google Pay or PayPal – or choose Klarna and pay later. All payments are encrypted and handled securely. Read about delivery

    Description

    Victron SmartSolar MPPT 250/100-MC4 VE.Can – MPPT solar charge controller for efficient solar charging

    The Victron SmartSolar MPPT 250/100-MC4 VE.Can is an MPPT solar charge controller from Victron Energy for 12/24/48V automatic selection, 36V: manual select battery banks. It regulates solar panel performance, handles a PV open-circuit voltage of up to 250 V absolute maximum coldest conditions / 245 V start-up and operating maximum, and built-in Bluetooth allows you to monitor operation and change settings directly from the VictronConnect app.

    Advantages

    • Built-in Bluetooth: Set up, monitor, and update firmware wirelessly in the VictronConnect app — no extra display required.
    • Up to 99% efficiency: The MPPT tracker continuously adjusts the working point so that the panels perform optimally under changing light conditions.
    • Automatic voltage selection: The controller automatically detects whether the battery bank is 12/24/48V automatic selection, 36V: manual select.
    • Multiple charging algorithms and custom profile: Adjustable absorption and float voltages to suit lead-acid, AGM, gel, and lithium batteries.
    • Up to 250 V absolute maximum coldest conditions / 245 V start-up and operating maximum PV open-circuit voltage: Provides the freedom to connect more panels in series and run longer cables.
    • Encapsulated electronics (IP43 (electronics), IP22 (connection area)): Can be mounted in technical rooms, boats, motorhomes, and site trailers.

    Application

    • Motorhomes, caravans, and vans with solar panels on the roof.
    • Boats, where the service battery needs to be kept fully charged throughout the season.
    • Summer cottages, allotments, and site trailers without a permanent mains connection.

    Specifications

    Specification Details
    Battery voltage 12/24/48V automatic selection, 36V: manual select
    Max. battery current 100 A
    Nominal solar power, 12V 1450 W
    Nominal solar power, 24V 2900 W
    Nominal solar power, 36V 4350 W
    Nominal solar power, 48V 5800 W
    Max. PV short-circuit current 70 A
    Max. PV open-circuit voltage 250 V absolute maximum coldest conditions / 245 V start-up and operating maximum
    Max. efficiency 99 %
    Self-consumption 12V: less than 35 mA / 48V: less than 20 mA
    Absorption charging voltage Default setting: 14.4 V / 28.8 V / 57.6 V (adjustable)
    Float charging voltage Default setting: 13.8 V / 27.6 V / 55.2 V (adjustable)
    Equalization charging voltage Default setting: 16.2 V / 32.4 V / 64.8 V (adjustable)
    Charging algorithm Multi-stage adaptive (eight pre-programmed algorithms) or custom algorithm
    Temperature compensation -16 mV/°C / -32 mV/°C / -48 mV/°C / -64 mV/°C
    Protection PV reverse polarity / output short circuit / overtemperature
    Operating temperature -30 °C to +60 °C (full performance up to 40 °C)
    Humidity 95 %, non-condensing
    Max. altitude 5000 m (full performance up to 2000 m)
    Environmental conditions indoor, unheated
    Pollution degree PD3
    Data communication VE.Can ports 5 / VE.Direct port 5 / Bluetooth, via VictronConnect app
    Remote on/off Yes, 2-pole terminals
    Programmable relay DPST AC rating: 4 A up to 240Vac / DC rating: 4 A up to 35Vdc, 1 A up to 60Vdc
    Parallel operation Yes, parallel synchronised operation via VE.Can (max. 25 units) or via Bluetooth (max. 10 units).
    Color blue (RAL 5012)
    PV terminals Tr models: 35 mm² / AWG2 / MC4 models: 3 pairs of MC4 connectors 3.6
    Battery terminals 35 mm² / AWG2
    Protection class IP43 (electronics), IP22 (connection area)
    Weight 4.5 kg
    Dimensions (h × w × d) Tr models: 216 × 295 × 103 mm / MC4 models: 246 × 295 × 103 mm
    Safety EN/IEC 62109-1, UL 1741, CSA C22.2
    Model Part number
    SmartSolar 150/85-Tr VE.Can SCC115085412
    SmartSolar 150/85-MC4 VE.Can SCC115085512
    SmartSolar 150/100-Tr VE.Can SCC115110412
    SmartSolar 150/100-MC4 VE.Can SCC115110512
    Nominal voltage 12/24/48 V
    Item number SCC125110512

    Download datasheet (PDF)
