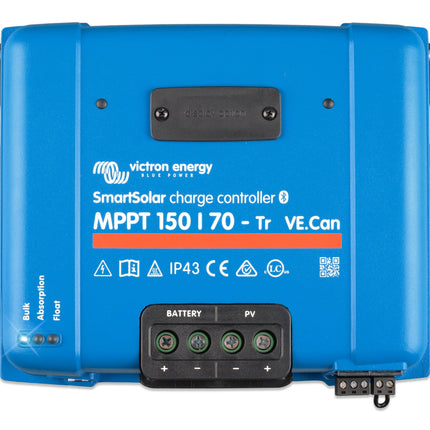

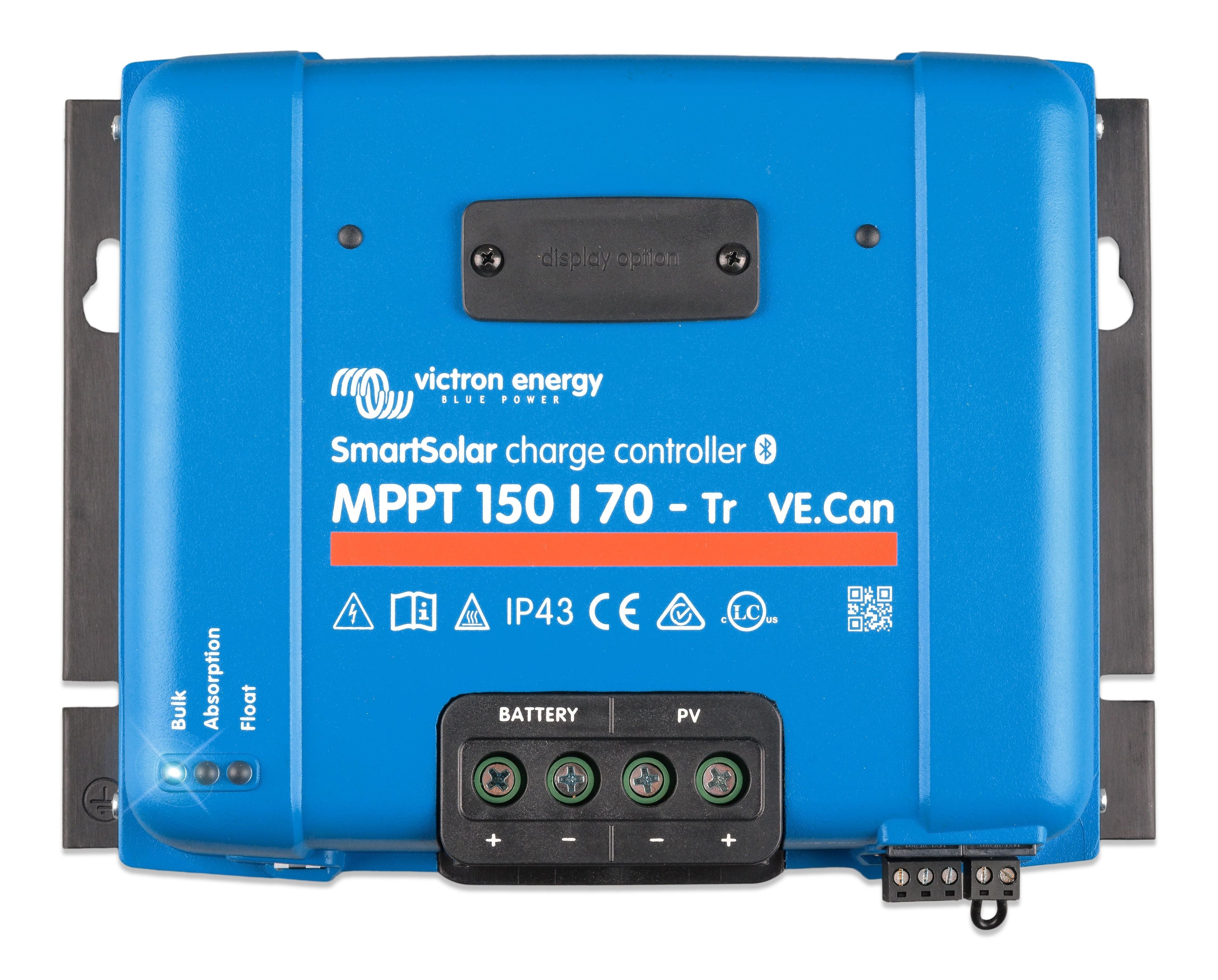

Victron SmartSolar MPPT 150/70-Tr VE.Can

Description

Victron SmartSolar MPPT 150/70-Tr VE.Can – MPPT solar charge controller for efficient solar charging

The Victron SmartSolar MPPT 150/70-Tr VE.Can is an MPPT solar charge controller from Victron Energy for 12/24/48V auto-select, 36V: manual select battery banks. It regulates the performance of the solar panels, handles a PV open circuit voltage of up to 150 V absolute maximum coldest conditions / 145 V start-up and operating maximum, and built-in Bluetooth makes it possible to monitor operation and change settings directly from the VictronConnect app.

Benefits

  • Built-in Bluetooth: Setup, monitoring, and firmware updates are done wirelessly in the VictronConnect app — without an extra display.
  • Up to 98% efficiency: The MPPT tracking continuously adjusts the operating point so that the panels perform optimally under changing light conditions.
  • Automatic voltage selection: The controller automatically detects whether the battery bank is 12/24/48V auto-select, 36V: manual select.
  • Multiple charging algorithms and user-defined profile: Adjustable absorption and float voltages to suit lead-acid, AGM, gel, and lithium batteries.
  • Up to 150 V absolute maximum coldest conditions / 145 V start-up and operating maximum PV open circuit voltage: Gives the freedom to connect more panels in series and run longer cables.
  • Encapsulated electronics (IP43 (electronics), IP22 (connection area)): Can be mounted in technical rooms, boats, motorhomes, and site trailers.

Application

  • Motorhome, caravan, and van with a solar panel on the roof.
  • Boat, where the service battery needs to be kept fully charged throughout the season.
  • Holiday home, allotment garden, and site trailer without a permanent grid connection.

Specifications

Specification Details
Battery voltage 12/24/48V auto-select, 36V: manual select
Max. battery current 70 A
Rated solar power, 12V 1000 W
Rated solar power, 24V 2000 W
Rated solar power, 36V 3000 W
Rated solar power, 48V 4000 W
Max. PV short-circuit current 50 A
Max. PV open circuit voltage 150 V absolute maximum coldest conditions / 145 V start-up and operating maximum
Max. efficiency 98 %
Self-consumption 12V: less than 35 mA / 48V: less than 20 mA
Absorption charging voltage Default setting: 14.4 V / 28.8 V / 57.6 V (adjustable)
Float charging voltage Default setting: 13.8 V / 27.6 V / 55.2 V (adjustable)
Equalization charging voltage Default setting: 16.2 V / 32.4 V / 64.8 V (adjustable)
Charging algorithm Multi-stage adaptive (eight pre-programmed algorithms) or user-defined algorithm
Temperature compensation -16 mV/°C / -32 mV/°C / -48 mV/°C / -64 mV/°C
Protection PV reverse polarity / output short circuit / overtemperature
Operating temperature -30 °C to +60 °C (full output up to 40 °C)
Humidity 95 %, non-condensing
Max. altitude 5000 m (full output up to 2000 m)
Environmental conditions indoor, unheated
Pollution degree PD3
Data communication VE.Can ports 5 / VE.Direct port 5 / Bluetooth, via VictronConnect app
Remote on/off Yes, 2 pole terminals
Programmable relay DPST AC rating: 4 A up to 240Vac / DC rating: 4 A up to 35Vdc, 1 A up to 60Vdc
Parallel operation Yes, parallel synchronized operation via VE.Can (max. 25 units) or via Bluetooth, (max. 10 units).
Color blue (RAL 5012)
PV terminals Tr models: 35 mm² / AWG2 / MC4 models: 2 pairs of MC4 connectors 3,6
Battery terminals 35 mm² / AWG2
Protection class IP43 (electronics), IP22 (connection area)
Weight 3 kg
Dimensions (h × w × d) Tr models: 185 × 250 × 95 mm / MC4 models: 215 × 250 × 95 mm
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Model Part number
SmartSolar 150/85-Tr VE.Can SCC115085412
SmartSolar 150/85-MC4 VE.Can SCC115085512
SmartSolar 150/100-Tr VE.Can SCC115110412
SmartSolar 150/100-MC4 VE.Can SCC115110512
Nominal voltage 12/24/48 V
Item number SCC115070411

Download datasheet (PDF)
