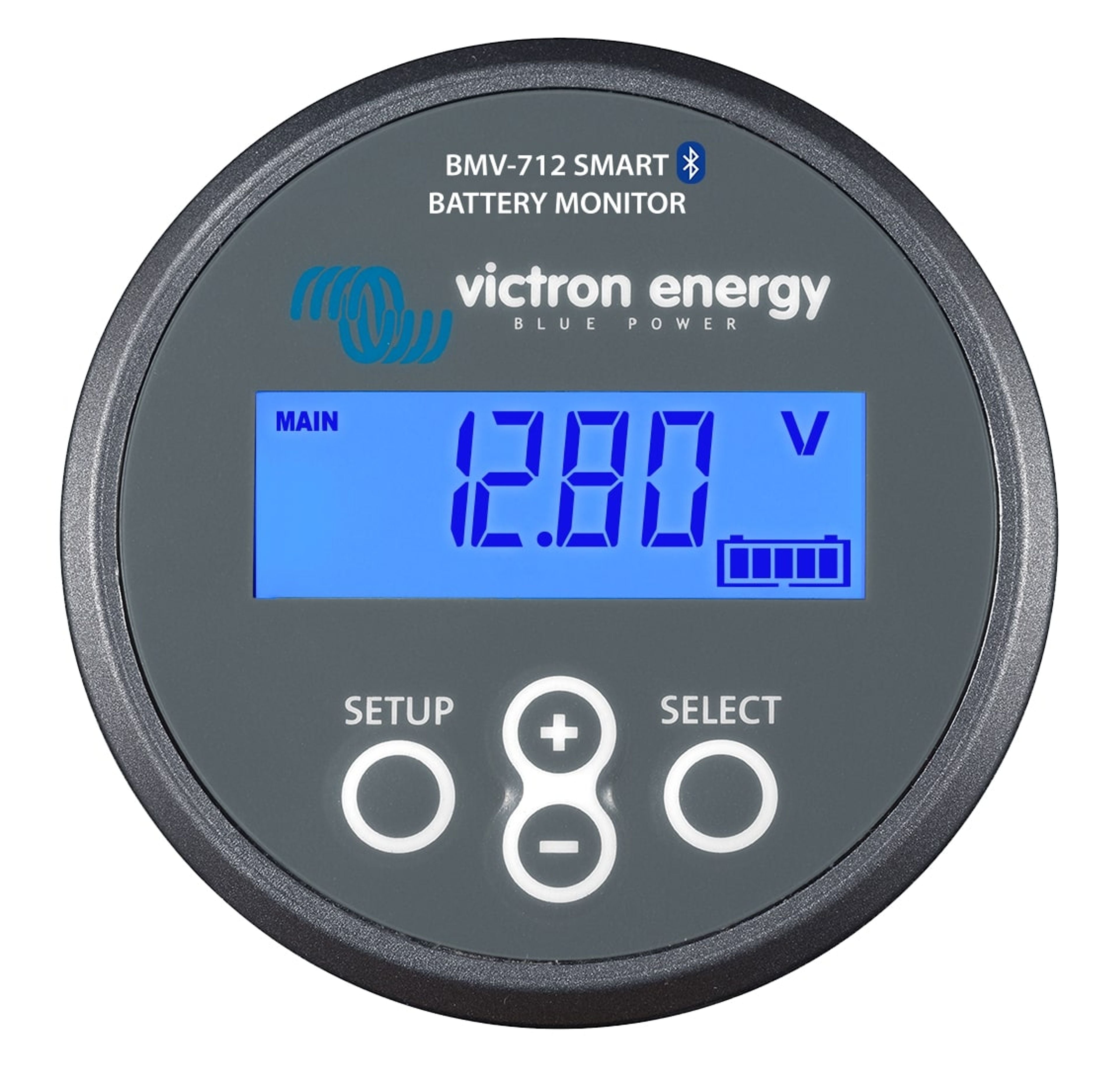

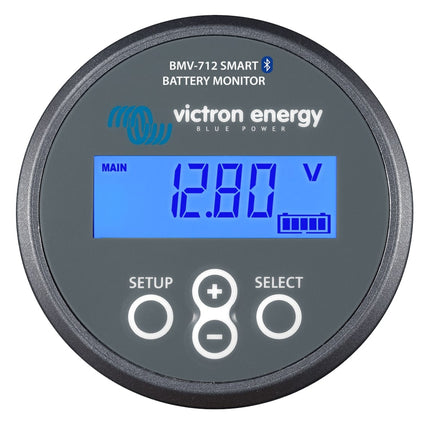

Victron BMV-712 Smart Monitor

Description

Victron Monitor BMV-712 Smart – battery monitor with precise consumption measurement

The Victron Monitor BMV-712 Smart is a battery monitor from Victron Energy that measures the actual current flowing in and out of the battery bank. You get the state of charge in percent, consumption, and expected time remaining — far more accurate than a simple voltage meter, and built-in Bluetooth makes it possible to monitor operation and change settings directly from the VictronConnect app.

Advantages

  • Precise state of charge in percent: Measures the actual current flowing in and out of the battery — not just the voltage.
  • Time remaining and consumption: Shows how much power is left at current consumption levels.
  • Built-in Bluetooth: All data directly on your phone in the VictronConnect app.
  • VE.Direct port: Can be connected to a GX device so battery data is included on the VRM Portal.
  • History: Stores data on deepest discharge, cycles, and voltage levels for troubleshooting.

Application

  • Precise display of battery state of charge in motorhomes and boats.
  • Monitoring of consumption and remaining capacity in solar power systems.
  • Troubleshooting and documentation of battery condition over time.

Specifications

Specification Details
Supply voltage range 6.5 - 70 Vdc
Current draw (backlight off) < 1 mA
Input voltage range 6.5 - 70Vdc
Battery capacity (Ah) 1 - 9999 Ah
Operating temperature range -40 +50 °C (-40 - 120°F)
Measures voltage of second battery, temperature or midpoint Yes
Temperature measurement range -20 +50 °C (-4 - 120°F)
VE.Direct port Yes
Bistable relay 60 V / 1 A normally open (function can be inverted)
Current ± 0.01 A
Voltage ± 0.01 V
Amp hours ± 0.1 Ah
State of charge (0 - 100%) ± 0.1 %
Time-to-go ± 1 min.
Temperature range ± 1 °C/°F
Accuracy current measurement ± 0.4 %
Accuracy voltage measurement ± 0.3 %
Installation Flush mount
Head unit front diameter 63 mm (2.5 inch)
Head unit front bezel 69 × 69 mm (2.7 × 2.7 inch)
Shunt connection bolts M10 (0.3937 inch)
Head unit body diameter and depth 52 mm (2.0 inch) and 31 mm (1.2 inch)
Head unit protection category IP55 (not intended for outdoor use)
Safety EN 60335-1
Emission / immunity EN 55014-1 / EN 55014-2
Automotive directive ECE R10-4 / EN 50498
Shunt (included) 500 A / 50 mV
Cables (included) 10 meter 6 core UTP with RJ12 connectors, / 1 cable 2 cables with 1 A slow blow fuse for battery positive connection
Temperature sensor optional (ASS000100000)
Weight 1.33 kg
Item number BAM030712000R

Download datasheet (PDF)
