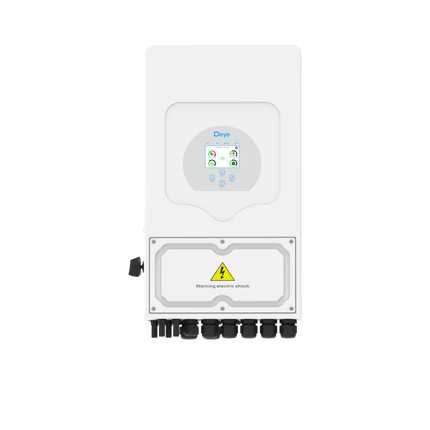

Deye SUN-6K-SG05LP1-EU-AM2-P hybrid inverter 6 kW 1-phase

Description

Deye SUN-6K-SG05LP1-EU-AM2-P hybrid inverter 6 kW 1-phase – solar inverter, battery charger and emergency power supply in one unit.

The Deye SUN-6K-SG05LP1-EU-AM2-P is a 6 kW 1-phase hybrid inverter that combines a solar inverter, battery charger, and emergency power supply into one unit. With 2 MPPT trackers and up to 12,000 W of connected solar power, it can both work in tandem with the grid and provide backup power to the house if the electricity goes out. This means you can store your own solar energy in the battery and use it when you actually need it – instead of selling it cheaply to the grid.

Benefits

  • Rated power 6,000 W
  • 2 independent MPPT trackers for flexible string configuration
  • Up to 12,000 W solar power capacity can be connected
  • Max. charge/discharge current 135 A to battery
  • Peak power in off-grid operation: 2 × rated power for 10 s
  • Efficiency up to 97.6%
  • Protection class IP65 – suitable for outdoor installation
  • Built-in LCD display for local operation and monitoring
  • Communication via WiFi, RS485, CAN
  • Ready for remote monitoring via Deye Cloud / SOLARMAN (requires data logger)

Application

  • Solar power systems with battery storage for private homes and small businesses
  • Upgrading existing solar power systems with a battery (AC or DC coupled)
  • Emergency power and backup during power outages
  • Load shifting – charge the battery when power is cheap and use it when prices peak

Specifications

Battery type Lead-acid or lithium-ion
Battery voltage range 40-60 V
Max. charge/discharge current 135 A
Charging strategy for lithium battery Automatic adaptation to BMS
Number of battery inputs 1
Max. connected PV power 12,000 W
Max. PV input power 9,600 W
Max. PV input voltage 500 V
Start-up voltage 125 V
MPPT voltage range 150-425 V
Rated PV input voltage 370 V
Max. PV operating current 18+18 A
Max. short-circuit current, input 27+27 A
Number of MPPT / strings per MPPT 2/1+1
Rated AC input/output power 6,000 W
Max. AC input/output power (VA) 6,600 VA
Rated AC input/output current 27.3/26.1 A
Max. AC input/output current 30/28.7 A
Max. continuous AC pass-through (grid to load) 40 A
Peak power (off-grid) 2 × rated power for 10 s
Rated input/output voltage 220V/230V 0.85Un-1.1Un L+N+PE
Rated grid frequency / range 50/45-55, 60/55-65 Hz
Power factor, adjustment range 0.8 leading – 0.8 lagging
Harmonic current distortion (THDi) <3% (of rated power)
DC injection current <0.5%ln
Max. efficiency 97.6%
Euro-efficiency 96.5%
MPPT efficiency >99%
Built-in protection Reverse DC polarity protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, arc fault detection (AFCI) (optional), anti-islanding protection, DC switch, insulation monitoring, residual current monitoring
Surge protection Type II (DC), Type II (AC)
Display LCD display
Communication interface WiFi, RS485, CAN
Operating temperature -40 to +60°C, >45°C derating
Permissible humidity 0~100%
Max. installation altitude 2,000 m
Noise level <45 dB
Protection class (IP) IP65
Inverter topology Non-isolated (solar), isolated (battery)
Overvoltage category OVC II (DC), OVC III (AC)
Dimensions (W×H×D) 330×580×232 (excl. connectors and brackets)
Weight 24.9 kg
Warranty 5 years / 10 years (warranty period depends on the inverter installation site – see Deye’s warranty policy)
Cooling Intelligent air cooling
Grid standards IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Item number: SUN-6K-SG05LP1-EU-AM2-P
